Etherwan Systems EX-19082 | Smart Managed 10-Port Gigabit PoE Ether...
Description
Description

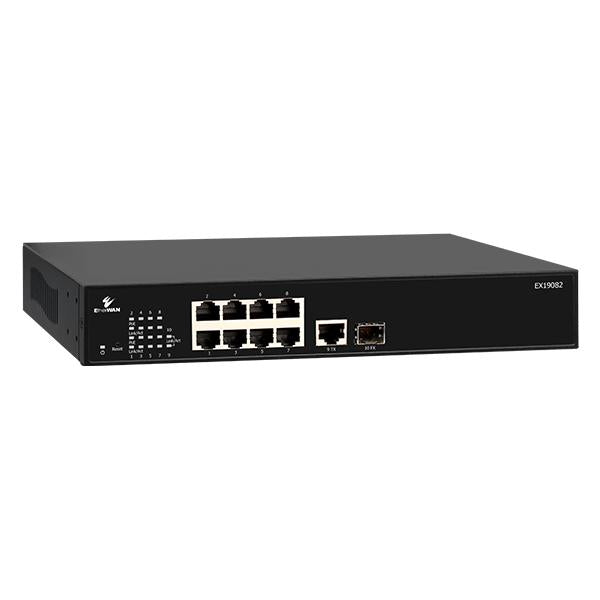

EtherWAN's EX19082 is a 10-port Gigabit Power over Ethernet switch with high performance and features suited for small-business and commercial environments. The EX19082 is equipped with 8 10/100/1000BASE-T(X) PoE+ ports and 2 Gigabit uplink ports (1 TX + 1 SFP). With features such as an easy-to-use management GUI, QoS, VLANs and full wire speed throughput, port speeds up to gigabit for 4K cameras and higher, and a power budget of 240W, the EX19082 is the perfect solution for security networks.
Etherwan Systems - EX-19082 - Features
- Easy to use web GUI
- VLAN configuration
- Comprehensive IP configuration and QoS
- Total PoE power budget of 240W to deliver sufficient power to all connected PoE devices
- Overloading protection
- Power and data over a single cable with gigabit speed capable of handling cameras with 4K resolution and higher and other high bandwidth devices
Specifications
Specifications
Etherwan Systems - EX-19082 - Specifications
| Ethernet | 10/100/1000BASE-T(X): 8 PoE+ ports + 1 TX port; 100/1000BASE SFP: 1 port |
|---|---|
| Standards | IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3ab 1000BASE-T; IEEE 802.3z 1000BASE-SX/1000BASE-LX; IEEE 802.3x Full duplex and flow control; IEEE 802.1p QoS; IEEE 802.1Q Tag VLANS; IEEE 802.3af Power over Ethernet (PoE); IEEE 802.3at Power over Ethernet (PoE+); IEEE 802.1AB LLDP (Link Layer Discovery Protocol); IEEE 802.3az EEE (Energy Efficient Ethernet) |
| Forward and Filtering Rate | 14,880pps for 10Mbps; 148,880pps for 100Mbps; 1,488,000pps for 1000Mbps |
| Processing Type | Store-and-Forward; Auto-Negotiation; Half-duplex back-pressure full-duplex; flow control; Auto MDI/MDIX |
| Input | 100-240VAC, 50/60Hz |
| Power Consumption | Device: 23W (without PoE); PoE Power Budget: 240W |
| Casing Material | Metal |
| Dimensions | 266 x 161 x 44mm (W x D x H); 10.5" x 6.34" x 1.73" |
| Weight | 4lbs (1.8kg) |
| Installation Type | Rack mounting, Desktop |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temp. | -10 to 70°C (14 to 158°F) |
| Relative Humidity | 10% to 90% (non-condensing) |
