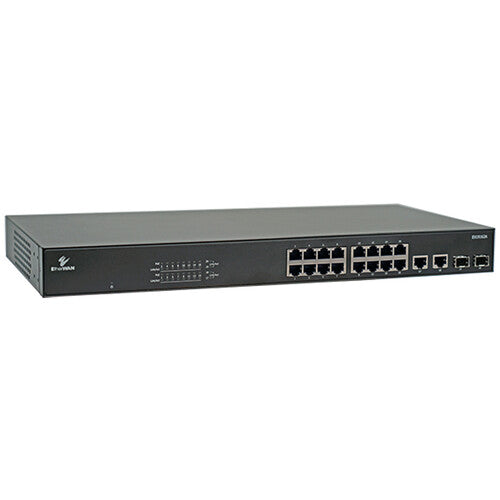

Etherwan Systems EX19162 | Smart Managed 16-Port Gigabit PoE Ethernet Switch with 2-Port SFP and 2-Port RJ45
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Etherwan Systems EX19162 | Smart Managed 16-Port Gigabit PoE Ethern...
Description
Description
EtherWAN's EX19162 is a 20-port Gigabit Power over Ethernet switch with high performance and features suited for small-business and commercial environments. The EX19162 is equipped with 16 10/100/1000BASE-T(X) PoE+ ports along with 4 gigabit uplink ports (2 RJ45 and 2 SFP). With full wire speed throughput, port speeds up to gigabit for 4K cameras and higher, and a power budget of 250W, the EX19162 is the perfect solution for security networking.
Etherwan Systems - EX19162 - Features
- 250W PoE Power Budget
- Overloading Protection
- Gigabit speeds capable of handling 4k cameras & other high bandwidth devices
Specifications
Specifications
Etherwan Systems - EX19162 - Specifications
| Ethernet | 10/100/1000BASE-T(X): 18 ports; 10/100/1000BASE-T(X): 18 ports |
|---|---|
| Standards | IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX/100BASE-FX; IEEE 802.3ab 1000BASE-T; IEEE 802.3z 1000BASE-SX/1000BASE-LX; IEEE 802.3x full duplex and flow control; IEEE 802.3af Power over Ethernet; IEEE 802.3at Power over Ethernet (PoE+) |
| Switching Fabric | 40Gbps |
| Forward/Filtering Rate | 14,880pps for 10Mbps; 148,880pps for 100Mbps; 1,488,000pps for 1000Mbps |
| Input | 100-240VAC, 50/60Hz |
| Power Consumption | Device:20W (Without PoE) |
| PoE Power Budget | 250W |
| Casing Material | Metal |
| Dimensions | 17.3" x 8.66" x 1.73" (W x D x H); 440 x 220 x 44mm (W x D x H) |
| Weight | 6.6lbs (3Kg) |
| Installation Type | Rack Mounting |
| Operating Temp. | 32 to 122°F (0 to 50°C) |
| Storage Temp. | -4 to 176°F (-20 to 80°C) |
| Relative Humidity | 10% to 90% (non-condensing) |
