Etherwan Systems EX42395AT | Hardened Unmanaged 4-Port Gigabit PoE ...
Description
Description

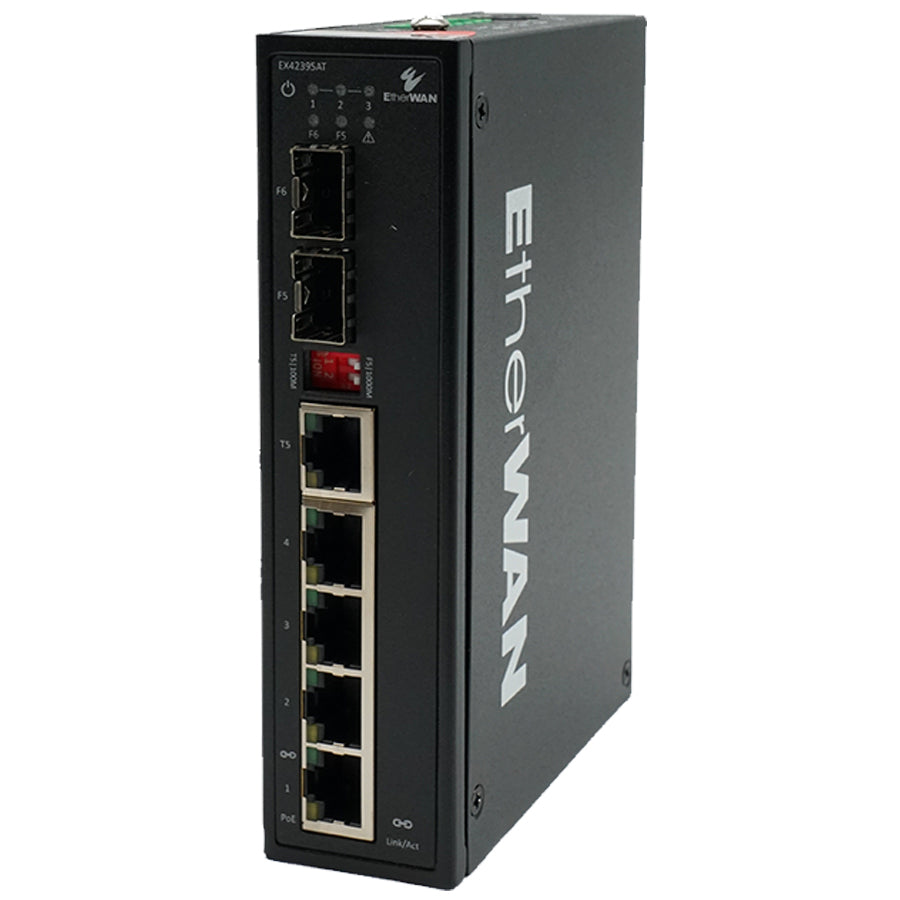

EtherWAN’s EX42395AT is a hardened unmanaged PoE switch which can be wall or DIN-rail mounted. 4 gigabit PoE ports provide up to 30W output per port with a PoE power budget of 120W, ensuring that the maximum possible power is delivered to every device at all times. 2 SFP/RJ45 combo uplink ports provide flexibility for data transmission and cascading. The EX42395AT provides the power required to support various security and other network applications, along with flexibility, speed, and reliability to support networks.
Etherwan Systems - EX42395AT - Features
- Up to 30W output per port for various security, LED lighting, and other applications
- Total PoE power budget of 120W
- Backward compatible with 802.3af devices
- Wide operating temperature range -40 to 75°C (-40 to 167°F)
- Fanless operation
- High impact, thermal shock, and electrical noise resistance
- Complimentary Technical Support
- In-person training and free online training courses available
- Limited Lifetime Warranty
Specifications
Specifications
Etherwan Systems - EX42395AT - Specifications
| Ethernet | 4 x 10/100/1000BASE-T(X) 2 x 100/1000BASE SFP/RJ45 |
|---|---|
| Alarm Contact | 1 x Relay Output Current Capacity 1A@24VDC |
| LED Indicators | Per Unit: Power 1, Power 2, Power 3 Per Port: Link/Activity |
| Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X IEEE 802.3x full duplex and flow control IEEE 802.3af PoE IEEE 802.3at PoE+ |
| Forward/Filtering Rate | 14,800pps for 10Mbps 148,810pps for 100Mbps 1,488,100pps for 1000Mbps |
| Switching Fabric | 12Gbps |
| Packet Buffer Memory | 1Mb |
| Input | 48-56VDC Redundant (Terminal block)+ 48-56VDC Power DIN Connector |
| Power Consumption | 5.76W max@48VDC, without PoE |
| PoE Power Output | Per Port: Up to 30W/port Power Budget: 120W |
| Casing Material | Aluminum |
| IP Rating | IP30 |
| Dimensions | 1.43" x 4.13" x 5.6" (W x D x H) 36.2 x 105 x 142mm |
| Weight | 1.0lbs (0.45kg) |
| Installation Type | DIN-rail or wall/panel mounting |
| Operating Temp. | -40 to 167°F (-40 to 75°C) |
| Storage Temp. | 49 to 185°F (-40 to 85°C) |
| Relative Humidity | 5% to 95% (non-condensing) |
