Etherwan Systems EX46910 | Hardened Unmanaged 8-Port Gigabit PoE an...
Description
Description

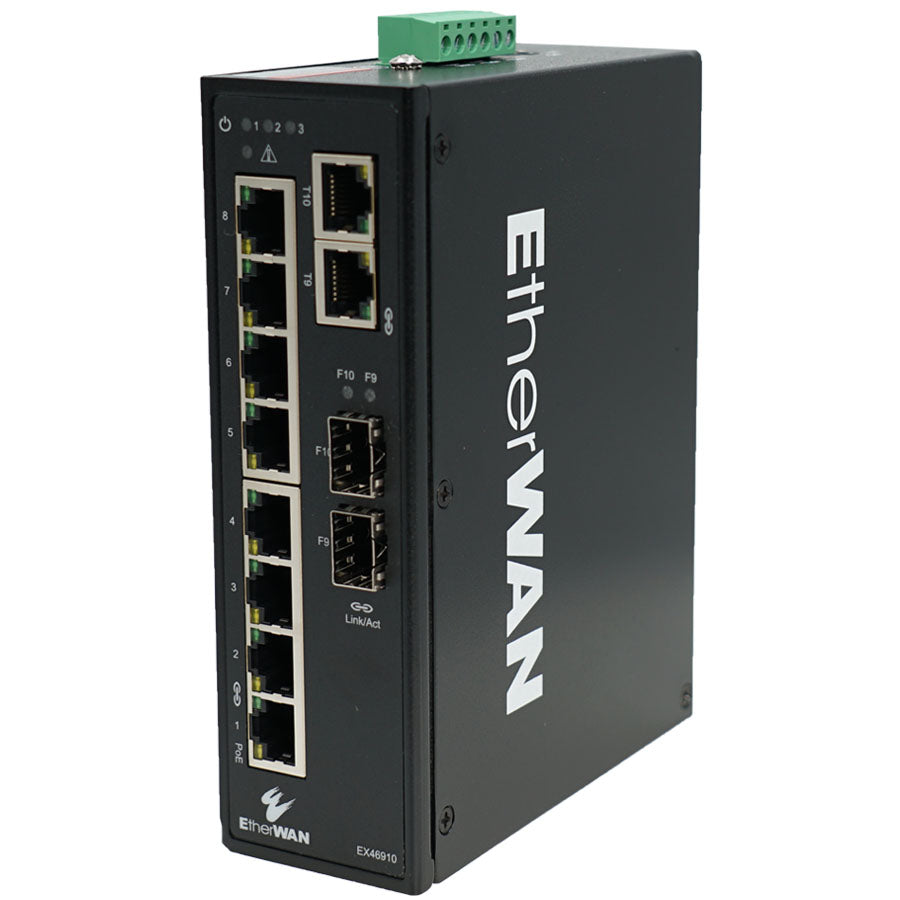

EtherWAN’s EX46910 is a compact hardened unmanaged DIN-rail mounted PoE switch. 8 gigabit PoE ports provide up to 30W output per port with a PoE power budget of 240W, ensuring that the maximum possible power is delivered to every device at all times. 2 combo uplink ports provide flexibility for data transmission and cascading. The EX46910 provides the power required to support various security and other network applications, along with flexibility, speed, and reliability to support networks where connectivity is crucial.
Etherwan Systems - EX46910 - Features
- Hardened-grade for non-ventilated and harsh environments
- Hardened-grade for non-ventilated and harsh environments
- Up to 30W power output for PTZ cameras and other security applications
- Combo RJ45/SFP uplink ports provide flexibility for data transmission
- Wide operating temperature range -40 to 75°C (-40 to 167°F)
- Fanless operation
- High impact, thermal shock, and electrical noise resistance
- Complimentary Technical Support
- In-person training and free online training courses available
- Limited Lifetime Warranty
Specifications
Specifications
Etherwan Systems - EX46910 - Specifications
| Ethernet | 8 x 10/100/1000BASE-T(X); 2 x 1000BASE SFP/RJ45 Combo |
|---|---|
| Alarm Contact | 1 x Relay Output |
| Current Capacity | 1A@24VDC |
| LED Indicators | Per Unit: Power 1, Power 2, Power 3, Relay; Per Port: Link/Activity |
| Standards | IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX/100BASE-FX; IEEE 802.3ab 1000BASE-T; IEEE 802.3z 1000BASE-X; IEEE 802.3x full duplex and flow control; IEEE 802.3af PoE; IEEE 802.3at PoE+ |
| Forward/Filtering Rate | 14,800pps for 10Mbps; 148,810pps for 100Mbps; 1,488,100pps for 1000Mbps |
| Switching Fabric | 20Gbps |
| Jumbo Frame Size | 10KB |
| Input | 48-56VDC redundant (terminal block) + 48-56VDC power DIN connector; 12-56VDC range for switch-only operation (no PoE) |
| Power Consumption | 5.76W max@48VDC, without PoE |
| PoE Power Output | Reverse Polarity Protection; Current Overload Protection |
| Casing Material | Aluminum |
| IP Rating | IP30 |
| Dimensions | 1.89” x 4.72” x 6.1” (W x D x H); 48 x 120 x 155mm |
| Weight | 1lbs (0.45kg) |
| Operating Temp. | -40 to 167°F (-40 to 75°C) |
| Storage Temp. | -40 to 185°F (-40 to 85°C) |
| Relative Humidity | 5% to 95% (non-condensing) |
