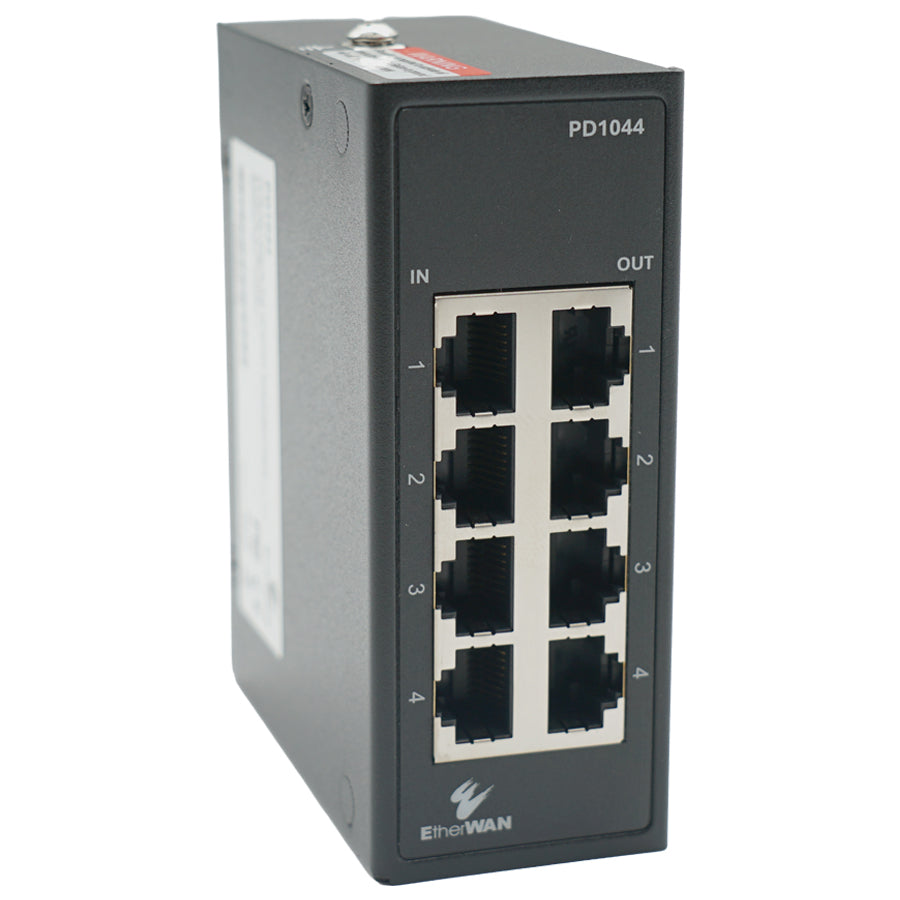

Etherwan Systems PD1044 | 4-Port Hardened RJ45 Surge Protector
Regular price
$258.03
Unit price
Brand: Etherwan Systems
|
SKU:
10675237
Regular price
$258.03
Unit price
Description
Description
Etherwan Systems PD1044 | 4-Port Hardened RJ45 Surge Protector
EtherWAN's PD1044 is a 4-Port Hardened RJ45 PoE-compatible Surge Protector designed to protect Ethernet networking devices from dangerous electrical surges. Designed for harsh environments, the PD1044 can be placed where you need it to protect your valuable network equipment.
Etherwan Systems - PD1044 - Features
- Provides pair-to-pair protection through RJ45 connector for Ethernet connections
- Supports DIN-rail or desktop installation
- Provides -40 to 75°C operating temperature range for extreme environments
- Pass-through Data and compatible with high power PoE (Power over Ethernet) up to 90W (802.3bt)
Specifications
Specifications
Etherwan Systems - PD1044 - Specifications
| Nominal discharge current Line-Ground (8/20) ?s | 10KA |
|---|---|
| Nominal discharge current Line-Ground (10/1000) ?s | 200A |
| Nominal discharge current Line-Line(8/20) ?s | 30A |
| Clamping Voltage Line-Ground | 600V |
| Clamping Voltage Line-Line | 20V |
| Insertion Loss @ 10MHZ/100MHZ | 1db |
