Description

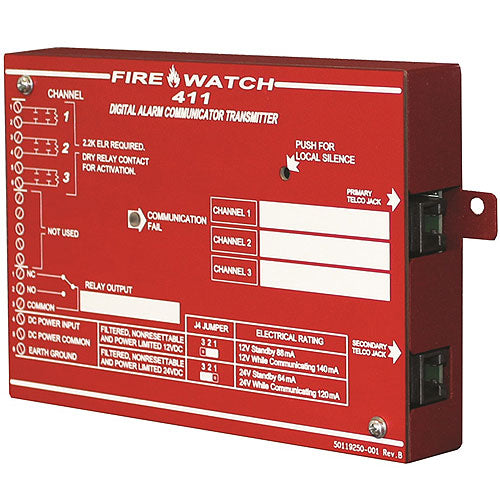

The Fire-Watch 411 Series from Fire.Lite are compact, multifaceted, slave Digital Alarm Communicator Transmitters (DACTs) designed for a variety of fire, and non-fire applications. The series consists of two models: the 411 and 411UD, providing three and four monitoring channels (inputs) respectively. These slave DACTs are a cost-effective solution for applications that require an existing (or new) Fire Alarm Control Panel to transmit system status to an off-site monitoring facility for Central or Remote Station compliance.

The411UD isa four-channel, dual-line slave Digital Alarm Communicator Transmitter with Form-C programmable relay and silence switch.Requires PRO-411 hand-held DACT programmer for local programming or PK-411UD Windows-based programming software for remote programming and real-time diagnostics.

Key Features

Four (411UD) monitoring channels (inputs).
Inputs may be individually programmed to monitor the host control panel for:
Fire Alarm.
Fire Trouble.
Fire Supervisory.
Process Monitoring.
AC Power Loss.
Security Alarm.
Other (Fire and Non-Fire Events).
Fully supervised trigger inputs require a contact closure for activation.
12- or 24-VDC operation, jumper-selectable.
Industry-first, UL recognized, ?dialer-runaway prevention feature.
Dual-line, rotary or touch-tone-dial DACT interfaces to public switched telephone network (leased phone lines are not required).
Includes 15 reporting formats, including the popular ADEMCO Contact ID format.

Specifications

Brand Name	Fire-Lite
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	411UD
Product Model	411UD
Product Name	411UD Fire Alarm Control/Communicator
Product Series	411
Product Type	Fire Alarm Control/Communicator

General Information

Name	Fire-Lite 411UD Fire Alarm Control/Communicator, Honeywell International, Inc, Fire-Lite
Category	Fire-lite Alarms By Honeywell, Fire, Fire Control Panels, Digital Fire Communicators
UPC Code	783008103323
Country of origin	United States. Country of origin is subject to change.

Physical Characteristics

Depth	1.1
Height	4.4
Width	6.8

Miscellaneous

Additional Information

Dual-line rotary- or Touch-Tone -dial DACT interfaces to public switched telephone networkNew long-distance carrier access code (CAC) compliant, accepting up to 20-digit Central Station telephone numbersFully programmable transmittal codes for fire, security, process monitoring, and othersIncludes 15 reporting formats, including the popular ADEMCO contact ID formatFully supervised trigger inputs require a contact closure for activationIndustry-first, UL recognized, dialer-runaway prevention featureField-programmable utilizing PRO-411 hand-held programmer12- or 24-VDC operation, jumper-selectableFour(411UD) monitoring channels (inputs)Surface mount technology (SMT)

Warranty

Limited Warranty	3 Year
