Brand: Fire-Lite Alarms Inc. | SKU: 963126

Fire-Lite Alarms, Inc. ANN-100 | 80 Character Remote Fire Annunciator; Red, Honeywell International

$787.05

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

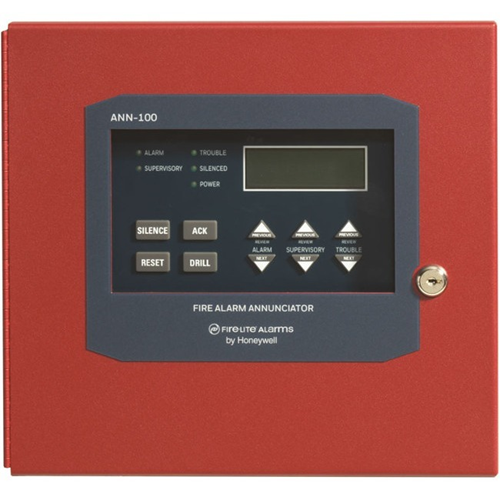

The ANN-100 annunciator is a backlit, 80-character LCD fire annunciator that mimics the Fire Alarm Control Panel (FACP) display. It provides system status indicators for AC Power, Alarm, Trouble, Supervisory, and Alarm Silenced conditions.

The ANN-100 and the FACP communicate over a two-wire serial interface employing the ANN-BUS communication format. Connected devices are powered, via two additional wires, by either the host FACP or a remote UL-listed, filtered power supply.

The ANN-100 displays English-language text of system point information including device type, zone, independent point alarm, trouble or supervisory status, as well as any custom alpha labels programmed into the control panel. It includes control switches for remote control of critical system functions. (A keyswitch prevents unauthorized operation of the control switches.)

Up to eight ANN-100s may be connected to each ANN-BUS of a FACP. No programming is required, which saves time during system commissioning.

Key Features

Listed to UL Standard 864, 9th Edition
Backlit 80-character LCD display (20 characters x 4 lines)
Mimics all display information from the host panel
Control switches for Signal Silence, System Acknowledge, Reset, and Drill
Control switches can be independently enabled or disabled at the FACP
Keyswitch enables/disables control switches and mechanically locks annunciator enclosure
Keyswitch can be enabled or disabled at the FACP
Enclosure supervised for tamper
System status LEDs for AC Power, Alarm, Trouble, Supervisory, and Alarm Silence
Local sounder can be enabled or disabled at the FACP
ANN-100 connects to the ANN-BUS terminal on the FACP and requires minimal panel programming
Displays device type identifiers, individual point alarm, trouble, supervisory, zone, and custom alpha labels
Time-and date display field
Surface-mount or flush-mount installation options
Optional trim ring for a more finished look
Can be remotely located up to 6,000 feet (1,800 m) from the panel
Backlight turns off during AC loss to conserve battery power but will turn back on if an alarm condition occurs
May be powered by 24 VDC from the host FACP or by remote power supply (requires 24 VDC)
Up to eight ANN-100s can be connected on the ANN-BUS

Specifications

Brand Name	Fire-Lite
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	ANN-100
Product Model	ANN-100
Product Name	80 Character Remote Fire Annunciator; Red
Product Type	Annunciator Module

General Information

Name	Fire-Lite 80 Character Remote Fire Annunciator; Red, Honeywell International, Inc, Fire-Lite
Category	Fire-lite Alarms By Honeywell, Fire, Fire Control Panels, Remote Fire Annunciators
UPC Code	783008112851
Country of origin	United States. Country of origin is subject to change.

Technical Information

Device Supported	Control Panel

Controls

Status Indicators	AC Power Alarm Trouble Supervisory Alarm Silenced

Power

Input Voltage	24 V DC

Physical Characteristics

Color	Red
Depth	3
Height	11.5
Width	12.3

Miscellaneous

Certifications & Standards	The listings and approvals below apply to the ANN-100. In some cases, certain modules may not be listed by certain approval agencies, or listing may be in process. Consult the factory for the latest listing status. ULULC: S2424 FM Approved CSFM: 7165-0075:0500 FDNY: COA #6261

Documents and Downloads

Fire-Lite Alarms ANN-100 Product_Manual
