Brand: Fire-Lite Alarms Inc. | SKU: 698568

Fire-Lite Alarms, Inc. ANN-I/O | LED Driver Module, Honeywell International

$637.49

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

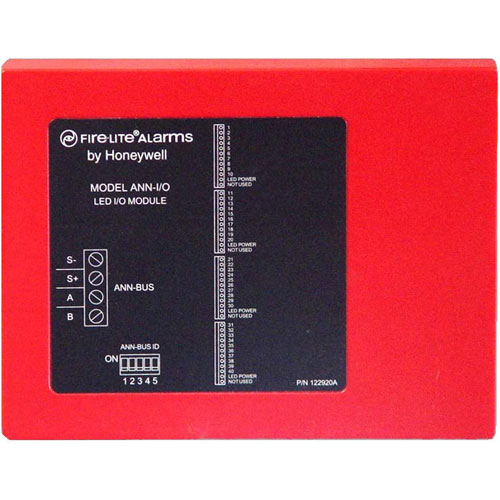

The ANN-I/O is an LED driver module that can be used in a wide variety of applications including as an interface with the Fire Alarm Control Panel (FACP) to drive most customized graphic annunciators. It comes in a plastic enclosure that may be mounted inside a custom annunciator or accessory cabinet and can drive up to 40 LEDs.

The ANN-I/O and the FACP communicate over a two-wire serial interface employing the ANN-Bus communication format. An additional two wires are used for 24-volt DC power. A single four-conductor unshielded cable may be used for both power and data communications.

Up to eight ANN-Bus devices may be connected to the ANN-Bus of each FACP.

Key Features

ANN-I/O connects to the ANN-Bus terminal on the FACP and requires minimal programming
Each ANN-I/O module drives up to 40 LEDs
Programmable to indicate activity for points or zones
Compatible with the ES-50X, ES-200X, MS-9600(UD)LS, MS-9200UDLS, MS-9050UD, MRP-2001, MRP-2002, MS-5UD, and MS-10UD
Can be remotely located up to 6,000 feet (1,829 m) from the panel
May be powered by 24 VDC from the host FACP or by remote power supply (requires 24 VDC)
Up to eight ANN-Bus devices may be connected to the ANN-Bus of each FACP

Specifications

Brand Name	Fire-Lite
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	ANN-I/O
Product Name	ANN-I/O LED Driver Module
Product Type	FACP LED Driver Module

General Information

Name	Fire-Lite ANN-I/O LED Driver Module, Honeywell International, Inc, Fire-Lite
Category	Fire-lite Alarms By Honeywell, Fire, Fire Control Panels, Remote Fire Annunciators
UPC Code	783196011776
Country of origin	United States. Country of origin is subject to change.

Technical Information

Device Supported	Fire Alarm Control Panel

Power

Input Voltage	24 V DC

Environmental

Maximum Operating Temperature	120F (48.9C)
Minimum Operating Temperature	32F (0C)

Physical Characteristics

Depth	1.5
Height	6
Width	7.8

Miscellaneous

Certifications & Standards	UL: S2424 CSFM: 7120-0075:0213 MEA: 442-06-E
Compatibility	Honeywell Fire Alarm Control Panel: ES-50X ES-200X MS-9600(UD)LS MS-9200UDLS MS-9050UD MRP-2001 MRP-2002 MS-5UD MS-10UD
