Description

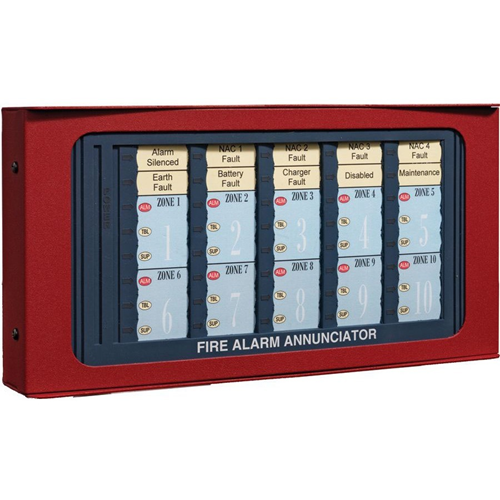

The ANN-LED annunciator module provides LED annunciation of general system faults and input zones/points when used with a compatible Fire Alarm Control Panel (FACP). The ANN-LED module provides alarm (red), trouble (yellow) and supervisory (yellow) indication for up to ten input zones or addressable points. ANNRLED has red LEDs only for alarm communication of up to 30 addressable points.

The ANN-LED is supplied standard with certain Canadian FACPs as required by ULC.

The ANN-LED and the FACP communicate over a two-wire serial interface employing the ANN-Bus communication format. An additional two wires are used for 24-volt DC power. A single four-conductor unshielded cable may be used for both power and data communications.

Up to eight ANN-Bus devices may be connected to the ANN-Bus of each FACP.

Key Features

ANN-LED connects to the ANN-Bus terminal on the FACP and requires minimal programming
Includes three LEDs for each zone: Alarm, Trouble and Supervisory.
Compatible with the ES-200X, ES-50X, MS-9600(UD)LS, MS9200UDLS, MS-9050UD, MS-5UD, MS-10UD, MRP-2001, and MRP-2002,
Can be remotely located up to 6,000 feet (1,829 m) from the panel
May be powered by 24 VDC from the host FACP or by remote power supply (requires 24 VDC)

Specifications

Brand Name	Fire-Lite
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	ANN-LED
Product Model	ANN-LED
Product Name	ANN-LED Annunciator Module
Product Type	Annunciator Module

General Information

Name	Fire-Lite ANN-LED Annunciator Module, Honeywell International, Inc, Fire-Lite
Category	Fire-lite Alarms By Honeywell, Fire, Fire Control Panels, Fire Control Accessories
UPC Code	783008110369
Country of origin	United States. Country of origin is subject to change.

Technical Information

Device Supported	Control Panel

Power

Input Voltage	24 V DC

Environmental

Maximum Operating Temperature	120.2F (49C)
Minimum Operating Temperature	32F (0C)

Physical Characteristics

Depth	1.8
Height	5.2
Width	10

Miscellaneous

Additional Information	POWERING THE DEVICES ON THE ANN-BUS FROM AUXILIARY POWER SUPPLY ANN-BUS DEVICE ADDRESSING
Compatibility	Fire-Lite Alarms Fire Alarm Control Panel: ES-200X ES-50X MS-9600(UD)LS MS9200UDLS MS-9050UD MS-5UD MS-10UD MRP-2001 MRP-2002
Certifications & Standards	The listings and approvals below apply to the ANN-LED. In some cases, certain modules may not be listed by certain approval agencies, or listing may be in process. Consult factory for latest listing status.UL: S2424ULC: S2424 (ANN-LED only)FM approvedCSFM: 7120-0075:0222MEA: 333-07-EFire Dept of NY: COA #6177

Documents and Downloads

Fire-Lite Alarms ANN-LED Product_Manual
