Brand: Fire-Lite Alarms Inc. | SKU: 1034427

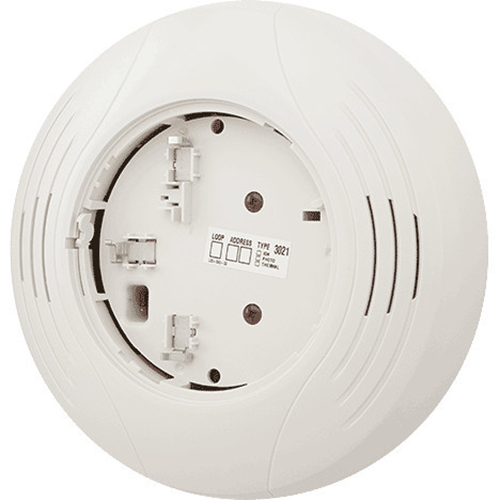

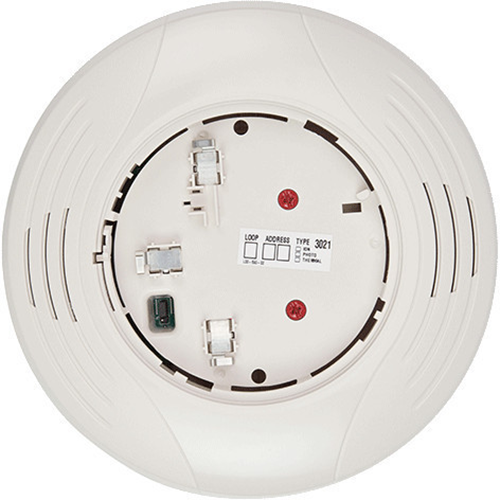

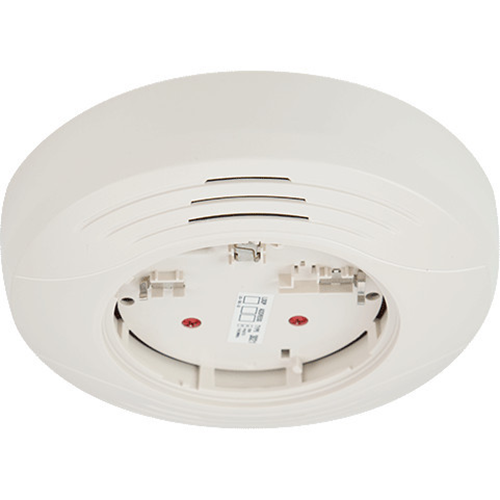

Fire-Lite Alarms, Inc. B224RB-WH | RELAY BASE; WHITE

$73.50

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The relay base is intended for use in an intelligent system. Form C latching relay contacts are included for the control of an auxiliary function.

The relay can operate in two different modes (short and long delay). The activation time when the short delay is used is 60 msec to 100 msec, while the activation time for the long delay is 6 sec to 10 sec.

A shunt with pin headers, located on the base PC board, can be used to choose your desired delay. B224RB-WH/B224RB-IV is set at the short delay when manufactured.

Specifications

Brand Name	Fire-lite Alarms By Honeywell
Manufacturer Part Number	B224RB-WH
Product Model	B224RB-WH

General Information

Name	RELAY BASE; WHITE
Category	Fire-lite Alarms By Honeywell, Fire, Notification Appliances, Fire Notification Accessories
UPC Code	783863052378
Country of origin	Mexico. Country of origin is subject to change.
