Brand: Fire-Lite Alarms Inc.
|
SKU:
674156

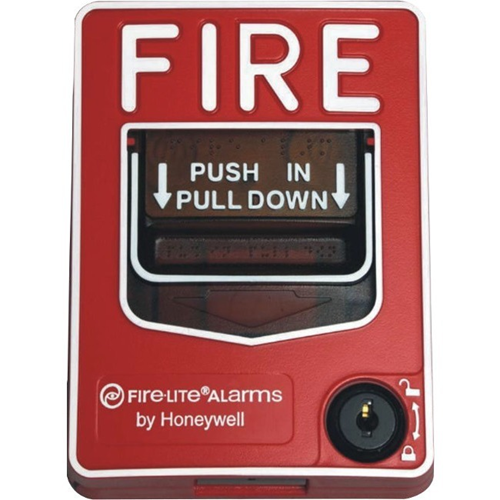

Fire-Lite Alarms, Inc. BG-12LX | Addressable Manual Pull Station, Honeywell International
Regular price
$165.77
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Fire-Lite Alarms, Inc. BG-12LX | Addressable Manual Pull Station, H...
Regular price
$165.77
Unit price
Brand: Fire-Lite Alarms Inc.
|
SKU:
674156
Regular price
$165.77
Unit price
Shipping calculated at checkout.
Description
Description
Key Features
- Maintenance personnel can open station for inspection and address setting without causing an alarm condition.
- Built-in bicolor LED, which is visible through the handle of the station, flashes in normal operation and latches steady red when in alarm.
- Handle latches in down position and the word ACTIVATED appears to clearly indicate the station has been operated.
- Captive screw terminals wire-ready for easy connection to SLC loop (accepts up to 12 AWG/3.25 mm?wire).
- Can be surface mounted (with SB-10 or SB-I/O) or semiflush mounted. Semi-flush mount to a standard singlegang, double-gang, or 4 (10.16 cm) square electrical box.
- Smooth dual-action design.
- Meets ADAAG controls and operating mechanisms guidelines (Section 4.1.3[13]); meets ADA requirement for 5 lb. maximum activation force.
- Highly visible.
- Attractive shape and textured finish.
- Key reset.
- Includes Braille text on station handle.
- Optional trim ring (BG12TR).
- Meets UL 38, Standard for Manually Actuated Signaling Boxes.
Specifications
Specifications
Specifications
| Brand Name | Fire-Lite |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | BG-12LX |
| Product Model | BG-12LX |
| Product Name | BG-12LX Addressable Manual Pull Station |
| Product Series | BG-12 |
| Product Type | Pull Station |
General Information
| Name | Fire-Lite BG-12LX Addressable Manual Pull Station, Honeywell International, Inc, Fire-Lite |
|---|---|
| Category | Fire-lite Alarms By Honeywell, Fire, Pull Stations & Accessories, Pull Stations |
| UPC Code | 783008104030 |
| Country of origin | Mexico. Country of origin is subject to change. |
Technical Information
| Features | Key Lock, Key Reset |
|---|---|
| PrintMessage | Fire, Pull Down, Push In |
| Pull Station Type | Double Action |
Power
| Input Voltage | 24 V DC, 28 V DC |
|---|
Environmental
| Maximum Operating Temperature | 120F (48.9C) |
|---|---|
| Minimum Operating Temperature | 32F (0C) |
Physical Characteristics
| Depth | 1.4 |
|---|---|
| Finishing | Textured |
| Height | 5.5 |
| Material | Polycarbonate |
Miscellaneous
| ApplicationUsage | Fire Alarm, Indoor |
|---|---|
| Certifications & Standards | ULULC Listed: S711 FM Approved CSFM: 7150-0075:184 MEA: 67-02-E Patented: U.S. Patent No. D428,351; 6,380,846; 6,314,772; 6,632,108 UL 38 |
