Description

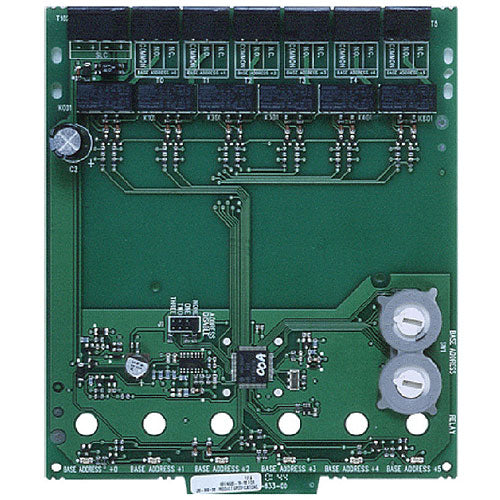

Fire-Lite's CRF-300-6 six-relay control module provides an intelligent alarm system with six Form-C relays.

The first module is addressed from 01 to 154 while the remaining modules are automatically assigned to the next five higher addresses. Provisions are included for disabling a maximum of three unused modules. A single isolated set of dry relay contacts is provided for each module address, which is capable of being wired for either a normally-open or normally-closed operation. The module allows the control panel to switch these contacts on command. No supervision is provided for the controlled circuit.

Each CRF-300-6 module has panel-controlled green LED indicators. The panel can cause the LEDs to blink, latch on, or latch off.

Key Features

Six addressable Form-C relay contacts.
Removable plug-in terminal blocks.
Status indicators for each point.
Unused addresses may be disabled.
Rotary address switches.
Mount one or two modules in a BB-X2F cabinet (optional).

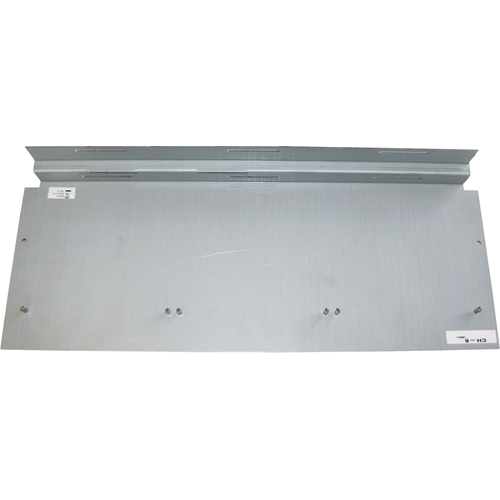

Mount up to six modules on a CHS-6 chassis in a BB-2F cabinet (optional).

Specifications

Brand Name	Honeywell
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	CRF-300-6
Product Name	CRF-300-6 Six Relay Control Module
Product Type	Relay

General Information

Name	6 FORM C RELAYS, Honeywell International, Inc, Honeywell
Category	Fire-lite Alarms By Honeywell, Fire, Fire Power & Relays, Fire Relays
UPC Code	783863019784
Country of origin	Mexico. Country of origin is subject to change.

Physical Characteristics

Depth	1
Height	6.8
Width	5.8

Miscellaneous

Additional Information

Normal Operating Voltage:15-32 VDC Stand-By Current: 1.45 mA Alarm Current: 32 mA (assumes all six relays have been switched once and all six LEDs solid on) Temperature Range: 32F to 120F (0C to 49C) Humidity: 10 to 93% Non-condensing Dimensions: 6.8 ?H ?5.8 ?W ?1.0 ?D Accessories: CH-6 Chassis; BB-6 Cabinet; BB-2 Cabinet Wire Gauge: 12-18 AWG Relay Current:30 mARelay Pulse (15.6 mS pulse duration) pulse under panel control
