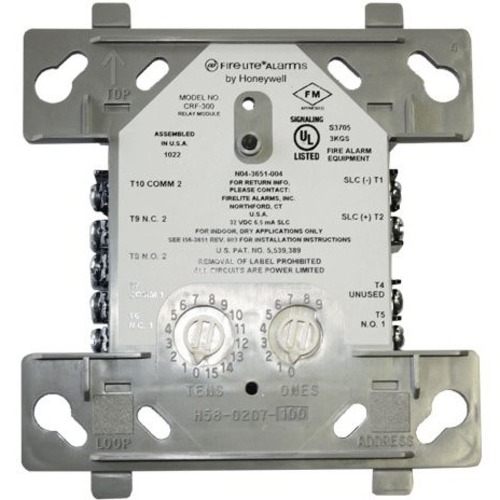

Fire-Lite Alarms, Inc. CRF-300 | Addressable Relay Module, Honeywell International

$147.87

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The CRF-300(A) Addressable Relay Module provides the system with a dry-contact output for activating a variety of auxiliary devices, such as fans, door holders, dampers, control equipment, etc. Address-ability allows the dry contact to be activated through panel programming, on a select basis.LiteSpeed is a communication protocol developed by Fire-Lite Engineering that greatly enhances the speed of communication between analog intelligent devices. Intelligent devices communicate in a grouped fashion. If one of the devices within the group has new information, the panel CPU stops the group poll and concentrates on single points. The net effect is response speed greater than five times that of other designs.

Specifications

Brand Name	Fire-Lite
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	CRF-300
Product Model	CRF-300
Product Name	CRF-300 Addressable Relay Module
Product Type	Addressable Relay Control Module

General Information

Name	Fire-Lite CRF-300 Addressable Relay Module, Honeywell International, Inc, Fire-Lite
Category	Fire-lite Alarms By Honeywell, Fire, Fire Control Panels, Fire Control Accessories, Sale
UPC Code	783863012457
Country of origin	Mexico. Country of origin is subject to change.

Physical Characteristics

Depth	1.3
Height	4.5
Width	4

Miscellaneous

Additional Information	Built-in type identification automatically identifies these devices to the control panelInternal circuitry and relay powered directly by two-wire SLC loopSEMS screws with clamping plates for wiring easeNormal Operating Voltage: 15 to 32 VDCMaximum SLC Current Draw: 6.5 mAHigh noise immunity (EMFRFI)Wide viewing angle of LED

Warranty

Limited Warranty	3 Year
