Description

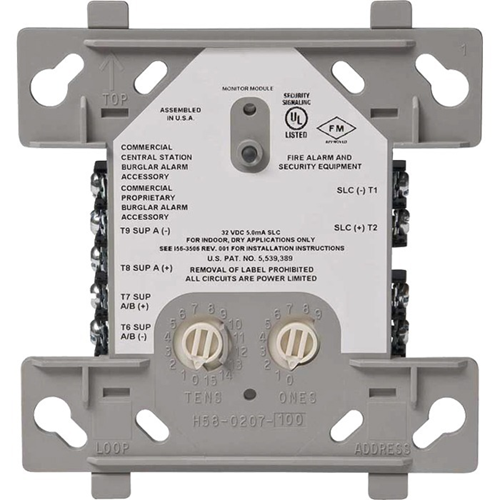

The MMF-300(A) Monitor Module is intended for use in intelligent, two-wire systems, where the individual address of each module is selected using the built-in rotary switches. It provides either a two-wire or four-wire fault-tolerant Initiating Device Circuit (IDC) for normally-open-contact fire alarm and supervisory devices. The module has a panel-controlled LED indicator. The MMF-300(A) can be used to replace M300(A) modules in existing systems.

MMF-300(A) is a standard-sized module (typically mounts to a 4 [10.16 cm] square box) that supervises either a Style D (Class A) or Style B (Class B) circuit of dry-contact input devices.

Key Features

Built-in type identification automatically identifies this device as a monitor module to the control panel.
Powered directly by two-wire SLC loop. No additional power required.
High noise (EMF/RFI) immunity.
SEMS screws with clamping plates for ease of wiring.
Direct-dial entry of address: 01 ? 159 on MS-9600 series panels, 01 ? 99 on other compatible systems.
LED flashes during normal operation and latches on steady to indicate alarm.

Specifications

Brand Name	Fire-Lite
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	MMF-300
Product Model	MMF-300
Product Name	MMF-300(A) Monitor Module
Product Type	Alarm Control Panel Monitor Module

General Information

Name	Fire-Lite MMF-300(A) Monitor Module, Honeywell International, Inc, Fire-Lite
Category	Fire-lite Alarms By Honeywell, Fire, Fire Control Panels, Fire Control Accessories
UPC Code	783863012433
Country of origin	Mexico. Country of origin is subject to change.

Technical Information

Device Supported	Fire Alarm Control Panel
Features	LED Indicator

Power

Input Voltage	32 V DC

Environmental

Maximum Operating Temperature	120F (48.9C)
Minimum Operating Temperature	32F (0C)

Physical Characteristics

Depth	1.3
Height	4.5
Width	4

Miscellaneous

Certifications & Standards	UL: S2424 ULC: S2424 FM Approved CSFM: 7300-0075:0185 MEA: 72-01-E
Compatibility	Fire-Lite Alarm MS-9050UD Intelligent Fire Alarm Control Panel Fire-Lite Alarm MS-9200UDLS Intelligent Fire Alarm Control Panel Fire-Lite Alarm MS-9600 Intelligent Fire Alarm Control Panel
