Brand: Fire-Lite Alarms Inc.
|
SKU:
698428

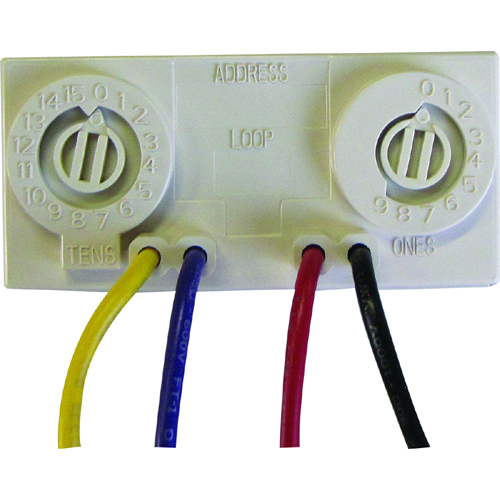

Fire-Lite Alarms, Inc. MMF-301 | Monitor Module, Honeywell International
Regular price
$95.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Fire-Lite Alarms, Inc. MMF-301 | Monitor Module, Honeywell Internat...
Regular price
$95.66
Unit price
Brand: Fire-Lite Alarms Inc.
|
SKU:
698428
Regular price
$95.66
Unit price
Shipping calculated at checkout.
Description
Description
Key Features
- Built-in type identification automatically identifies this device as a monitor module to the panel.
- Powered directly by two-wire SLC loop. No additional power required.
- High noise (EMF/RFI) immunity
- Supervises IDC wiring and connection of external power source.
- High noise (EMF/RFI) immunity.
- SEMS screws with clamping plates for ease of wiring.
- Direct-dial entry entry of address: 01 ? 159 on MS-9600 series panels, 01 ? 99 on other compatible systems.
- LED flashes during normal operation.
- LED latches ste
Specifications
Specifications
Specifications
| Brand Name | Fire-Lite |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | MMF-301 |
| Product Model | MMF-301 |
| Product Name | MMF-301 Monitor Module |
| Product Type | Alarm Control Panel Monitor Module |
General Information
| Name | Fire-Lite MMF-301 Monitor Module, Honeywell International, Inc, Fire-Lite |
|---|---|
| Category | Fire-lite Alarms By Honeywell, Fire, Fire Control Panels, Fire Control Accessories |
| UPC Code | 783863012464 |
| Country of origin | Mexico. Country of origin is subject to change. |
Technical Information
| Device Supported | Control Panel |
|---|
Power
| Input Voltage | 32 V DC |
|---|
Environmental
| Maximum Operating Temperature | 120.2F (49C) |
|---|---|
| Minimum Operating Temperature | 32F (0C) |
Physical Characteristics
| Depth | 0.7 |
|---|---|
| Height | 1.3 |
| Width | 2.8 |
Miscellaneous
| Additional Information | Average Operating Current:375 ? (group poll); 350 ? (direct poll); 600 ? Maximum (Communicating, IDC Shorted)EOL resistance:47K ohmsMaximum IDC Resistance:1,500 OhmsMaximum IDC Voltage:11 VoltsMaximum IDC Current:450 ?Humidity:10% to 93% Non-condensingWire length:6 ? minimum |
|---|
