Description

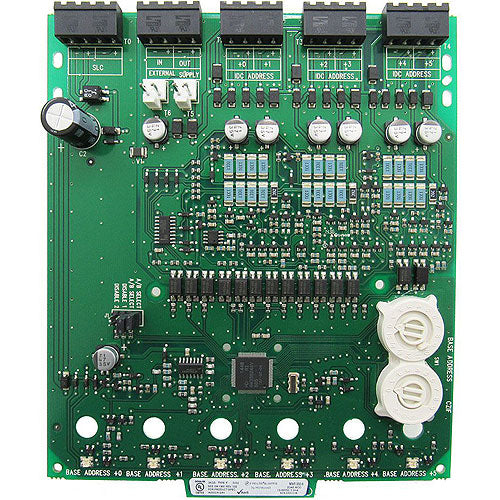

FireLite?s MMF-302-6 six-zone interface module provides an interface between the intelligent alarm system and a two-wire conventional detection zone. A common SLC input is used for all modules, and the initiating device circuits share a common external supervisory supply and ground. Otherwise, each module operates independently from the others.

The first module is addressed from 01 to 154 while the remaining modules are automatically assigned to the next five higher addresses. Provisions are included for disabling a maximum of two unused modules. All two-wire detectors being monitored must be two-wire-compatibility-listed with the modules. The MMF-302-6 transmits the status of a zone of two-wire detectors to the fire alarm control panel. Status conditions are reported as normal, open, or alarm. The interface module supervises the zone of detectors and the connection of the external power supply. Each MMF-302-6 module has panel-controlled bicolor LED indicators. The panel can cause the LEDs to blink, latch on, or latch off.,

Specifications

Brand Name	Fire-Lite
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	MMF-302-6
Product Name	MMF-302-6 Interface Module
Product Type	Interface Module

General Information

Name	Fire-Lite MMF-302-6 Interface Module, Honeywell International, Inc, Fire-Lite
Category	Fire-lite Alarms By Honeywell, Fire, Fire Control Panels, Fire Control Accessories

Technical Information

Device Supported	Fire Alarm Control Panel
Features	LED Indicator

Power

Input Voltage	28 V DC

Environmental

Maximum Operating Temperature	120F (48.9C)
Minimum Operating Temperature	32F (0C)

Physical Characteristics

Depth	1.3
Height	6.8
Width	5.8

Miscellaneous

Certifications & Standards	UL Listed: S2424 ULC Listed: S2424 (MMF-302-6A) MEA Listed: 385-02-E CSFM: 7300-0075:0185 FM Approved
Package Contents	MMF-302-6 Interface Module Mounting hardware
