Brand: Fire-Lite Alarms Inc. | SKU: 698612

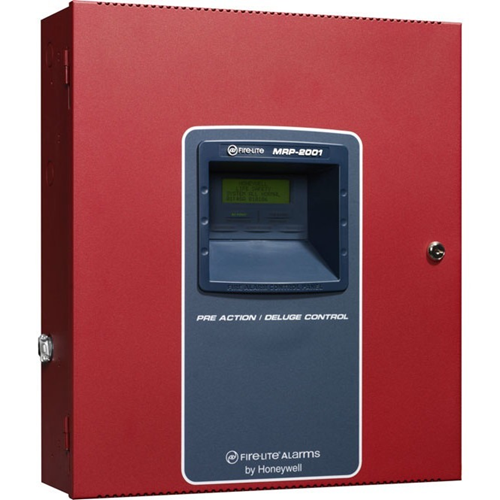

Fire-Lite Alarms, Inc. MRP-2001 | Fire Alarm Control Panel, Honeywell International

$1,566.35

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The MRP-2001 is a six-zone FACP for single and dual hazard deluge and preaction applications. The MRP-2001 provides reliable fire detection, signaling and protection for commercial, industrial and institutional buildings requiring water-based releasing. The MRP-2001 is compatible with System Sensor's i3 detectors which are conventional smoke detectors that can transmit a maintenance trouble signal to the FACP indicating the need for cleaning and a supervisory 'freeze' signal when the ambient temperature falls below the detector rating of approximately 45F (7.22C). In addition, the control panel is compatible with conventional input devices such as two-wire smoke detectors, four-wire smoke detectors, pull stations, waterflow devices, tamper switches and other normally-open contact devices. Refer to the FireLite Device Compatibility Document for a complete listing of compatible devices.

MRP-2001Features and Benefits

6-zone Style B (Class B) or 6-zone Style D (Class A) with optional modules

4 Programmable Output Circuits Style Y (Class B) or 4 Programmable Output Circuits Style Z (Class A) with optional modules

Outputs programmable for Releasing Solenoids

Dual hazard operation

Adjustable waterflow discharge timer and two soak timers

Cross-zone capability

Pre-programmed and custom application templates

Built-in NAC synchronization for System Sensor, Wheelock, Gentex, Faraday and Amseco devices

Built in programmer: Integral 80 character LCD display with backlighting and keypad

Annunciator bus supports up to 8 devices, including ANN-80 LCD Remote Annunciator, remote serial or parallel printer gateway, and LED graphic annunciator

7.0 amps total usable current

Specifications

Brand Name	Fire-Lite
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	MRP-2001
Product Model	MRP-2001
Product Name	MRP-2001 Fire Alarm Control Panel
Product Type	Fire Alarm Control Panel

General Information

Name	Fire-Lite MRP-2001 Fire Alarm Control Panel, Honeywell International, Inc, Fire-Lite
Category	Fire-lite Alarms By Honeywell, Fire, Fire Control Panels, Conventional Fire Panels
UPC Code	783008109097
Country of origin	United States. Country of origin is subject to change.

Technical Information

Number of Standard Zones	6

Battery

Battery Chemistry	Lead Acid
Battery Voltage	27.6 V DC

Power

Input Voltage	120 V AC

Physical Characteristics

Depth	5.3
Height	19.3
Width	16.8

Miscellaneous

Additional Information	Designed for sprinkler standards NFPA 13, 15 and 16Dual hazard operationAdjustable waterflow discharge timer and two soak timersSix programmable Style B (Class B) IDCs (Initiating Device Circuit)Four programmable Style Y (Class B) output circuits - (special application power)Three programmable Form-C relays7.0 amps total 24 VDC output currentResettable and non-resettable output power
Compatibility	System Sensor i3 Series DetectorsFire-Lite:Smoke DetectorsPull StationsWaterflow DevicesTamper Switches
Certifications & Standards	UL: S624 FM approved CSFM: 7165-0075:0216 MEA: 333-07-E,MRP-2001
Package Contents	Fire Alarm Control PanelBackboxPower SupplyTechnical ManualInstruction Sheet
Limited Warranty	3 Year
