Description

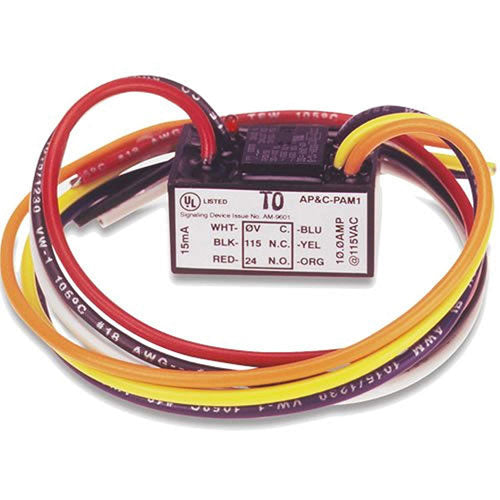

Air Products & Controls, Inc. PAM-1, PAM-2, and PAM-4 Multi-Voltage Relay Modules are encapsulated multi-voltagedevices. The PAM-1 relay provides 10.0 Amp Form-C contactsand may be energized by one of three input voltages: 24 VAC,24 VDC, or 115 VAC. The PAM-2 relay provides 7.0 AmpForm-C contacts and may be energized by one of two inputvoltages: 12 VDC or 24 VDC. The PAM-4 relay provides 10.0Amp Form-C contacts and may be energized by a wide voltagerange from 9 VDC to 40 VDC A red LED is provided on both models. When illuminated, itindicates the relay coil is energized. Either model may be mounted by using the double-sided adhe-sive tape, the self-drilling screw, or by placing loosely in a backbox.PAM-1, PAM-2, and PAM-4 Relay Modules are ideal for appli-cations where remote relays are required for control or statusfeedback. They are suitable for use with HVAC, temperaturecontrol, fire alarm, security, energy management, and lightingcontrol systems.

Specifications

Brand Name	Fire-Lite
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	PAM-1
Product Model	PAM-1
Product Name	PAM-1 Relay
Product Type	Relay

General Information

Name	Fire-Lite PAM-1 Relay, Honeywell International, Inc, Fire-Lite
Category	Fire-lite Alarms By Honeywell, Fire, Fire Power & Relays, Fire Relays
UPC Code	814498021818
Country of origin	China. Country of origin is subject to change.

Power

ApplicationUsage	Energy Management System, Fire Alarm System, HVAC System, Lighting Control System, Security System, Temperature Control System

Physical Characteristics

Depth	0.9
Width	1
Height	1.5

Miscellaneous

Additional Information	Power requirements: 0.015 Amps per position @ 24 VDC, 24 VAC, 115VAC. Contact Rating: 10.0 A @ 115 VAC, 7.0 A @ 28 VDC, 250uA @ 5VDC. Product Line Information: Single SPDT relay with LED, double-sided adhesivetape, mounting screw, 12 (30.48 cm) leads, and six wire nu

Documents and Downloads

Fire-Lite Alarms PAM-1 Product_Manual
