Brand: Fire-Lite Alarms Inc. | SKU: 963137

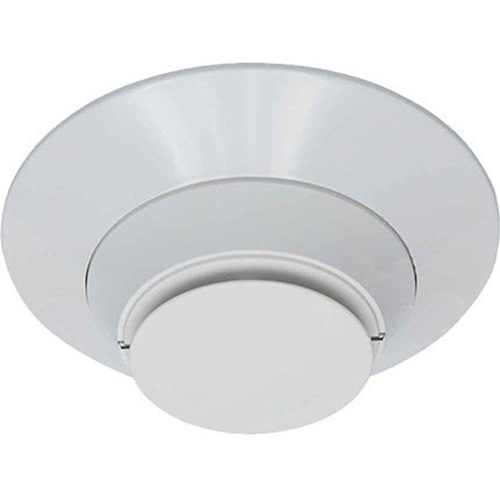

Fire-Lite Alarms, Inc. SD365R-IV | Smoke Detector, Honeywell International

$289.64

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

The Fire-Lite Alarms SD365(A), SD365R(A), and SD365HT(A) intelligent plug-in smoke detectors are designed for both performance and aesthetics, and are direct replacements for the SD355 Series. A new modern, sleek, contemporary design and enhanced optical sensing chamber is engineered to sense smoke produced by a wide range of combustion sources in accordance with more stringent code standards.

Exclusively for use with Fire-Lite?s addressable fire alarm control panels, the SD365(A) Series point ID capability allows each detector?s address to be set with rotary, decimal address switches, providing exact detector location for emergency personnel to quickly locate a fire during its early stages, potentially saving precious rescue time while also reducing property damage. Two LEDs on each sensor light to provide a local, visible sensor indication. The SD365(A) Series also offers 135F (57C) fixed temperature thermal sensing on the SD365T(A) and a remote test capable detector on the SD365R(A) for use with DNR(A)/DNRW duct smoke detector housings.

Key Features

Two-wire SLC loop connection
Unit uses base for wiring
Compatible with LiteSpeed and CLIP protocol systems
Stable communication technique with noise immunity
Addressable by device
Rotary, decimal addressing (Refer to the Fire-Lite panel manuals for device capacity.)
Sleek, low-profile, stylish design
Unique single-source design to respond quickly and dependably to a broad range of fires
Integral communications and built-in device-type identification
Built-in tamper resistant feature
Remote test feature from the panel
Walk test with address display (an address on 121 will blink the detector LED: 12-[pause]-1(LiteSpeed systems only)
Built-in functional test switch activated by external magnet
Removable cover and insect-resistant screen for simple field cleaning
Expanded color options

Specifications

Brand Name	Fire-Lite
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	SD365R-IV
Product Model	SD365R-IV
Product Name	SD365R-IV Smoke Detector
Product Series	SD365
Product Type	Smoke Detector

General Information

Name	Fire-Lite SD365R-IV Smoke Detector, Honeywell International, Inc, Fire-Lite
Category	Fire-lite Alarms By Honeywell, Fire, Fire Detection Devices, Addressable & Wireless Smoke Detectors
UPC Code	783863051760
Country of origin	Mexico. Country of origin is subject to change.

Technical Information

Connectivity Technology	Wired
Detectable Medium	Fire
Sensing Technology	Photoelectric

Controls

Status Indicators	Alarm, LED

Power

Input Voltage	32 V DC

Physical Characteristics

Color	White
Diameter	6.2
Form Factor	Ceiling Mount
Weight (Approximate)	3.40 oz

Miscellaneous

Package Contents	SD365R-IV Smoke Detector 6 Mounting Base Trim Ring
