Brand: Fire-Lite Alarms Inc. | SKU: 963141

Fire-Lite Alarms, Inc. W-BG12LXSP | W-BG12LXSP SWIFT Wireless Pullstation, Honeywell International

$468.70

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

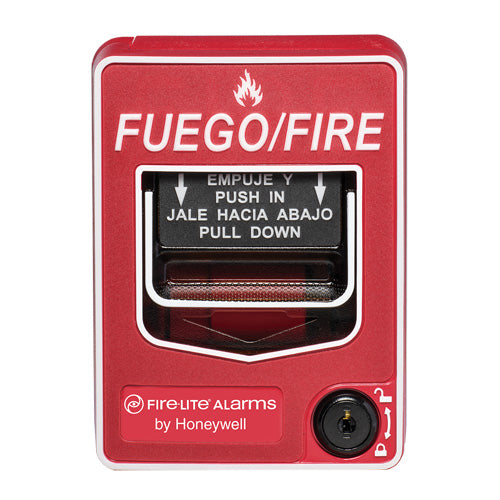

The FireLite SWIFT addressable pull station is a dual-action, manual pull station with a key-lock reset feature that provides one addressable alarm initiating input. The pull station features similar aesthetic design and durable construction characteristics as the wired counterpart to blend seamlessly throughout the environment. The device communicates to the FACP through the SWIFT mesh network and gateway, and is powered by 4 batteries offering a 2- year, UL listed battery life.

Installation is fast and straightforward by using a mounting plate that can be surface mounted. Once the mounting plate is firmly attached to the wall, the pull station is snapped into place and locked down with 3 screws.

The mechanical operation is simple and easy to use in an emergency with a PUSH IN/PULL DOWN handle that latches in the down position to clearly indicate the station has been operated while the word ACTIVATED appears on top of the handle in bright yellow, further indicating the operation of the station.

The wireless pull station meets the Americans with Disabilities Act Accessibility Guidelines' (ADAAG) controls and operating mechanisms guidelines (section 4.1.3[13]) and the Americans with Disabilities Act (ADA) requirement for a 5-pound maximum pull force to activate the pull station and conforms to ANSI/UL Standard 38.

The SWIFT wireless system offers intelligent (addressable) devices which provide secure, reliable communication to the Fire Alarm Control Panel (FACP) across a Class A mesh network. Wireless devices create an opportunity for applications where it is costly (concrete walls/ceilings, buried wires), obtrusive (surface mount conduit), or possibly dangerous (asbestos) to use traditional wired devices. In addition, both wired and wireless devices can be present on the same FACP providing an integrated wired-wireless solution for increased installation potential.

The mesh network within the SWIFT system creates a child-parent relationship between the devices so that each device has two parents providing a second path for communications on every device. If one device can no longer operate for any reason, the rest of the devices can still communicate with each other, directly or through one or more intermediate devices. Once an initial mesh network is formed, mesh restructuring automatically occurs to find the strongest paths possible within the network.

The SWIFT system also engages frequency hopping to prevent system interference whether intentional or accidental. Each device complies with part 15 of the FCC rules meaning operation is subject to the following two conditions: 1) The device may not cause harmful interference and 2) The device must accept any interference received including interference that may cause undesired operation.

Key Features

Integrated LED display Status
Cascading Mesh Wireless Technology (902-928 MHz frequency)
Requires (4) CR-123A batteries (included)
Compatible with wireless battery cartridge (W-BATCART)

Specifications

Brand Name	Fire-Lite
Manufacturer	Honeywell International, Inc
Manufacturer Part Number	W-BG12LXSP
Product Line	SWIFT
Product Model	W-BG12LXSP
Product Name	W-BG12LXSP SWIFT Wireless Pullstation
Product Type	Pull Station

General Information

Name	Fire-Lite W-BG12LXSP SWIFT Wireless Pullstation, Honeywell International, Inc, Fire-Lite
Category	Fire-lite Alarms By Honeywell, Fire, Pull Stations & Accessories, Pull Stations
UPC Code	783863052231
Country of origin	United States. Country of origin is subject to change.

Technical Information

Features	Durable, Key Lock, Key Reset, LED Indicator
PrintMessage	Fire, Pull Down, Push In
Pull Station Type	Double Action

Environmental

Maximum Operating Temperature	120F (48.9C)
Minimum Operating Temperature	32F (0C)

Physical Characteristics

Depth	2.1
Height	5.6
Width	4.2
Finishing	Textured
Material	Polycarbonate

Miscellaneous

ApplicationUsage	Commercial, Fire Alarm
Certifications & Standards	UL Listed: S711 CSFM: 7150-0075:0503 FCC ID: AUBWFSPS FM Approved ADAAG (Section 4.1.3[13]) ADA UL 38 FCC Part 15
Compatibility	Fire-Lite Alarms Control Panels: ES-50X ES-200X MS-9200UDLS MS-9600(UD)LS
Package Contents	W-BG12LXSP SWIFT Wireless Pullstation 4 x CR-123A Batteries
