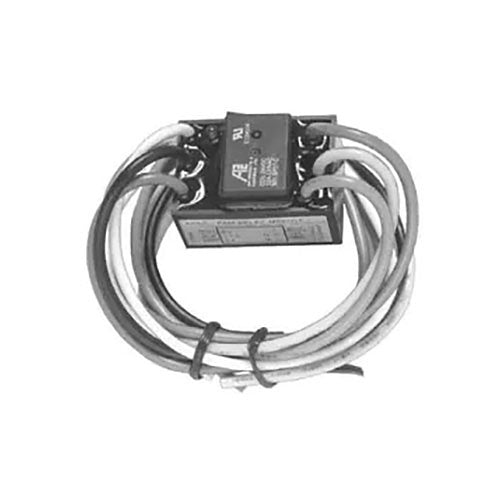

Fire-Lite Alarms PAM-2 | Multi-Voltage Relay Module
Regular price
$31.06
Unit price
Brand: Fire-Lite Alarms Inc.
|
SKU:
698447
Regular price
$31.06
Unit price
Description
Description
Fire-Lite Alarms PAM-2 | Multi-Voltage Relay Module
Air Products & Controls, Inc. PAM-1, PAM-2, and PAM-4 Multi-Voltage Relay Modules are encapsulated multi-voltagedevices. The PAM-1 relay provides 10.0 Amp Form-C contactsand may be energized by one of three input voltages: 24 VAC,24 VDC, or 115 VAC. The PAM-2 relay provides 7.0 AmpForm-C contacts and may be energized by one of two inputvoltages: 12 VDC or 24 VDC. The PAM-4 relay provides 10.0Amp Form-C contacts and may be energized by a wide voltagerange from 9 VDC to 40 VDC A red LED is provided on both models. When illuminated, itindicates the relay coil is energized. Either model may be mounted by using the double-sided adhe-sive tape, the self-drilling screw, or by placing loosely in a backbox.PAM-1, PAM-2, and PAM-4 Relay Modules are ideal for appli-cations where remote relays are required for control or statusfeedback. They are suitable for use with HVAC, temperaturecontrol, fire alarm, security, energy management, and lightingcontrol systems.
Specifications
Specifications
Specifications
| Brand Name | Fire-Lite |
|---|---|
| Manufacturer | Honeywell International, Inc |
| Manufacturer Part Number | PAM-2 |
| Product Model | PAM-2 |
| Product Name | PAM-2 Relay |
| Product Type | Relay |
General Information
| Name | Fire-Lite PAM-2 Relay, Honeywell International, Inc, Fire-Lite |
|---|---|
| Category | Fire-lite Alarms By Honeywell, Fire, Fire Power & Relays, Fire Relays |
| UPC Code | 999999177713 |
| Country of origin | China. Country of origin is subject to change. |
Power
| ApplicationUsage | Energy Management System, Fire Alarm System, HVAC System, Lighting Control System, Security System, Temperature Control System |
|---|
Physical Characteristics
| Depth | 0.9 |
|---|---|
| Width | 1 |
| Height | 1.5 |
Miscellaneous
| Additional Information | Power requirements: 0.015 Amps per position @12 VDC or 24 VDC. Contact Rating:7.0 A @ 115 VAC, 7.0 A @ 28 VDC, 250uA @ 5VDC. Product Line Information: Single SPDT relay with LED, double-sided adhesivetape, mounting screw, 12 (30.48 cm) leads, and six wire nut |
|---|
