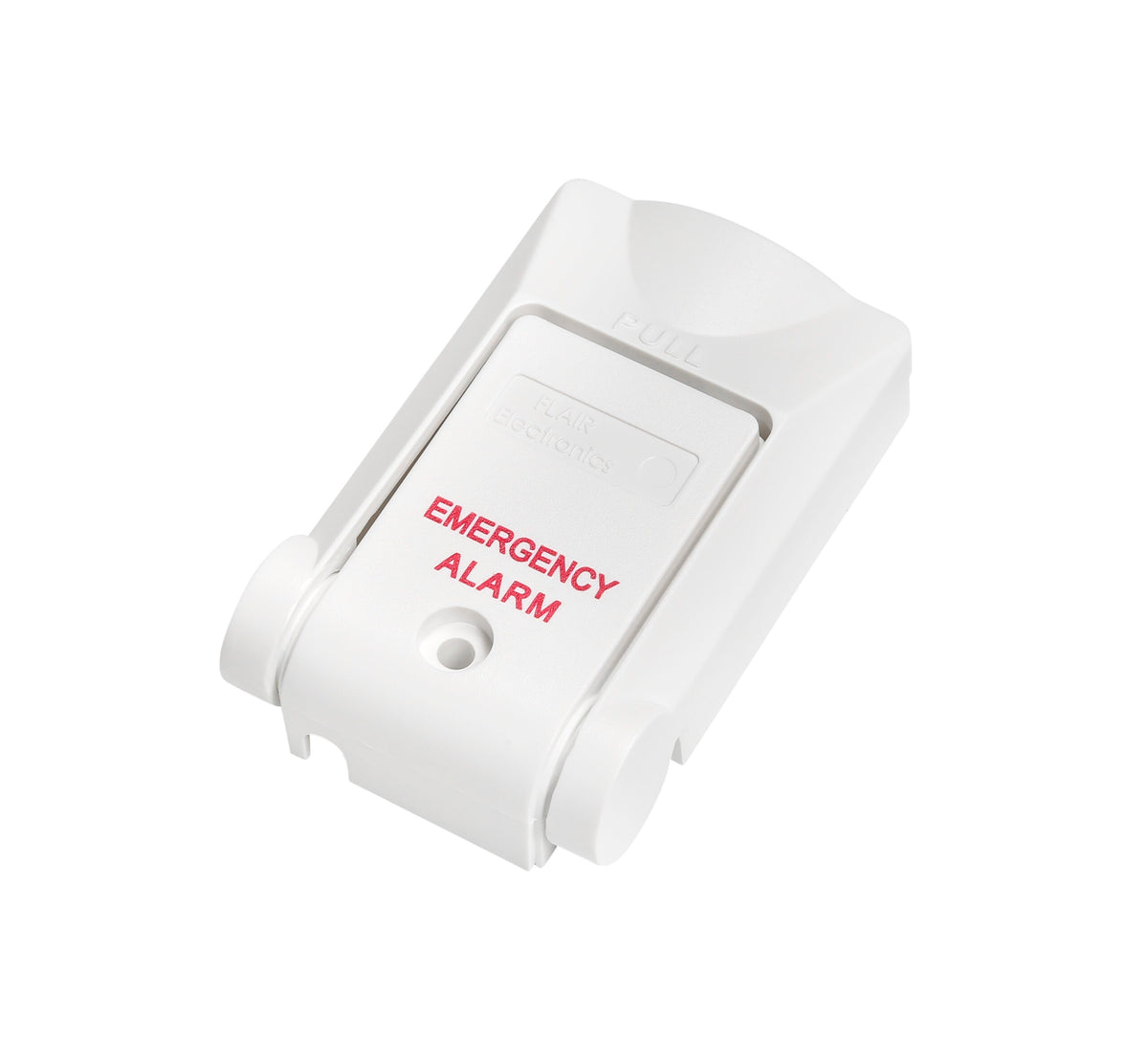

Flair Electronics FLR-3045 | Panic Switch, White, Surface-Mount, 100 VDC, 0.5 mA, ABS, 3/4 in. H, 1-3/4 in. W, 3 in. L
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
You asked and Flair has come through again. We have duplicated the Sentrol Series 3040 Panic Switches and they are available for immediate purchase. This low-profile panic switch can be mounted on the wall or under a desk out of sight and will not snag on clothing. Pulling the lever activates the switch and triggers a call. The smooth operation and noticeable click of the lever lets the user know that the switch is working properly. This panic switch is good for all panic or call system applications, such as under desks at banks, retail stores and hotels or on the wall in freezers, industrial facilities and government buildings. Installation is easy with just two screws for mounting and either wires or terminals for connection to alarm. Model 3045 is Normally Closed when secure and comes with 12 in. 22 AWG wires. Model 3045-SPDT has both an Open and Closed-loop and comes with color-coded 12" #22 AWG wires.
Specifications
Specifications
Flair Electronics - FLR-3045 - Product Categories
- Security
- Intrusion Detection
- Intrusion Detection Sensors
- Panic Buttons and Tamper Switches
Flair Electronics - FLR-3045 - Specifications
| Manufacturer Part Number | FLR-3045 |
|---|---|
| Manufacturer | Flair Electronics |
| Amperage | 0.5 mA |
| Color | White |
| Configuration | 1NO |
| Contact Configuration | 1NO |
| Contact Rating - Current | 0.5 A Max Switching |
| Contact Rating - Voltage | 100 VAC/VDC Max Switching |
| Contact Rating | 10 W |
| Height | 3/4 in. |
| Length | 3 in. |
| Loop Type | Closed |
| Material | ABS |
| Mounting Style | Surface-Mount |
| Mounting | Surface Mount |
| Product Type | Panic Switch |
| Resistance | 0.1 Max Initial Contact |
| Size | LxWxH: 3 x 1-3/4 x 3/4 in. |
| Type | Specialty |
| Voltage | 100 VDC |
| Width | 1-3/4 in. |
