Brand: Flair Electronics
|
SKU:
10023108

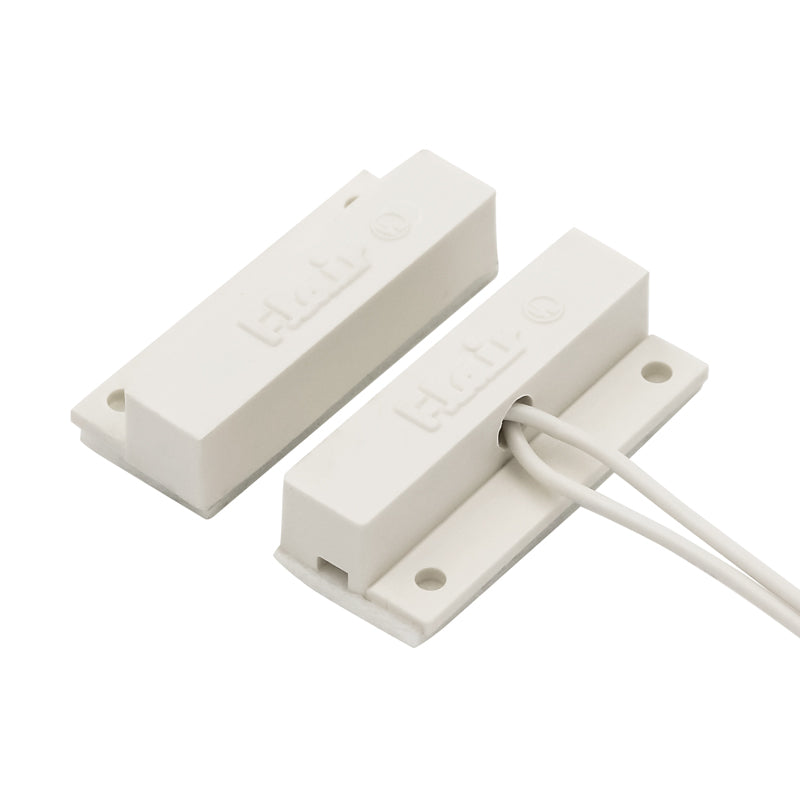

Flair Electronics LMS13-2 WHT | Magnetic Contact, Surface-Mount, Closed Loop, 1NC, 100 VDC, 50 mA
Regular price
$3.43
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Flair Electronics LMS13-2 WHT | Magnetic Contact, Surface-Mount, Cl...
Regular price
$3.43
Unit price
Brand: Flair Electronics
|
SKU:
10023108
Regular price
$3.43
Unit price
Shipping calculated at checkout.
Description
Description
Flair Electronics LMS13-2 WHT | Magnetic Contact, Surface-Mount, Closed Loop, 1NC, 100 VDC, 50 mA
Surface-mount contacts come standard in NC, NO, SPDT and DPDT electrical configurations. All sizes available, terminals or wires, screw and tape mounting. We can also customize these contacts to meet your specific needs.
Flair Electronics - LMS13-2 WHT - Features
- 1 1/4" Long Surface Mount Magnetic Contact
- 12" Center #22 AWG Leads
- Rare Earth Magnet
- Double Stick Tape or Screw Mount
- Colors: White and Brown
- Contacts and Magnets available separately
- E.O.L. Resistors, Diodes and Supervisory Loops Available
- Lifetime Warranty
- Safety Approvals
Specifications
Specifications
Flair Electronics - LMS13-2 WHT - Product Categories
- Security
- Intrusion Detection
- Intrusion Detection Sensors
- Contacts
Flair Electronics - LMS13-2 WHT - Specifications
| Manufacturer Part Number | LMS13-2 WHT |
|---|---|
| Manufacturer | Flair Electronics |
| Amperage | 50 mA |
| Color | White |
| Configuration | NO |
| Connectivity | Wired |
| Contact Configuration | 1NC |
| Contact Rating - Current | 0.5 A Max Switching |
| Contact Rating - Voltage | 100 VAC/VDC Max Switching |
| Contact Rating | 10 W |
| Contact Resistance | 0.1 |
| Height | 1/4 in. |
| Length | 1-1/4 in. |
| Loop Type | Closed |
| Mounting Style | Surface-Mount |
| Mounting | SURFACE MOUNT |
| Power Source | Electrical |
| Product Type | Magnetic Contact |
| Resistance | 0.1 ? Maximum Initial Contact |
| Size | LxWxH: 1-1/4 x 1/2 x 1/4 in. |
| Standard Gap | 3/4 in. |
| Voltage | 100 VDC |
| Width | 1/2 in. |
