Brand: Flair Electronics
|
SKU:
10023186

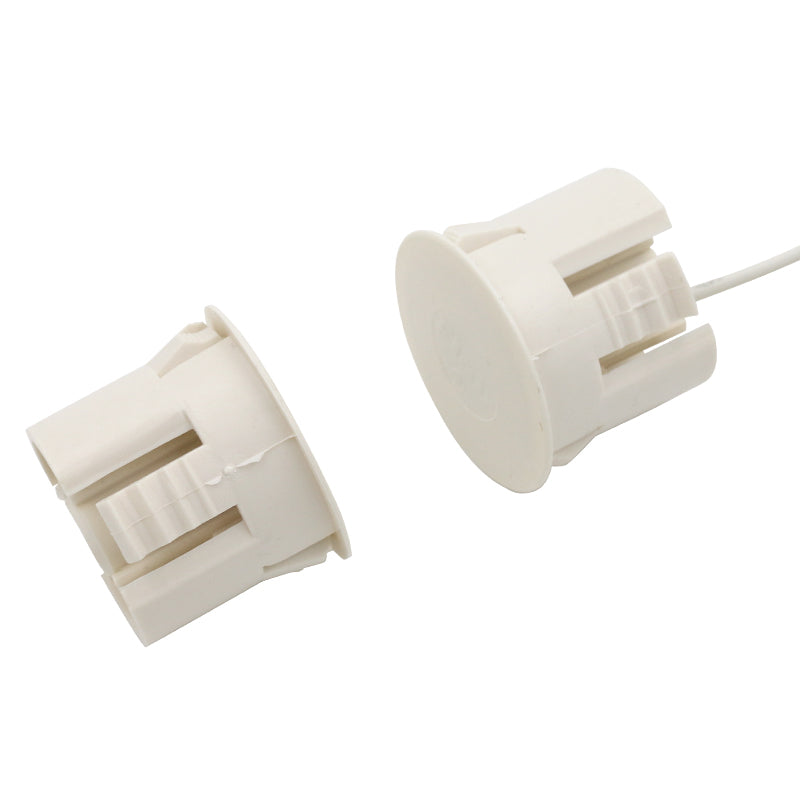

Flair Electronics MSS100-1 WHT | Recessed Magnetic Contact, NO, Wired, Normally Open, 30 VDC, White, 0.1 A, 0.2 A
Regular price
$9.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Flair Electronics MSS100-1 WHT | Recessed Magnetic Contact, NO, Wir...
Regular price
$9.47
Unit price
Brand: Flair Electronics
|
SKU:
10023186
Regular price
$9.47
Unit price
Shipping calculated at checkout.
Description
Description
Flair Electronics MSS100-1 WHT | Recessed Magnetic Contact, NO, Wired, Normally Open, 30 VDC, White, 0.1 A, 0.2 A
Recessed Magnetic Contacts come standard in NC, NO, SPDT, and SPDT electrical configurations. Standard wide gap is 3 and several mounting options include floor or rail bracket.
Flair Electronics - MSS100-1 WHT - Features
- 1" Dia. Recessed Magnetic Contact
- 12" #22 AWG Wire Leads
- Rare Earth Magnet
- Self Locking in Steel and Wood
- E.O.L. Resistors, Diodes and Supervisory Loops Available
- Contacts and Magnets Available Separately
- Colors: White, Brown, Black and Gray
- Lifetime Warranty
- Safety Approvals
Specifications
Specifications
Flair Electronics - MSS100-1 WHT - Product Categories
- Security
- Intrusion Detection
- Intrusion Detection Sensors
- Contacts
Flair Electronics - MSS100-1 WHT - Specifications
| Manufacturer Part Number | MSS100-1 WHT |
|---|---|
| Manufacturer | Flair Electronics |
| Amperage | 0.2 |
| Color | White |
| Connectivity | Wired |
| Contact Configuration | No |
| Contact Rating | 3 W |
| Contact Resistance | 0.1 |
| Diameter | 1 |
| Length | 7/8 |
| Loop Type | Open |
| Mounting Location | Floor; Rail Bracket |
| Mounting Style | Recessed-Mount |
| Mounting Type | Bracket-Mount |
| Power Source | MSS100-6: Maximum 100 VDC; MSS100-1 and MSS100-4: Maximum 30 VDC |
| Product Type | Recessed Magnetic Contact |
| Special Rating | UL Listed |
| Standard Gap | 1/2 |
| Voltage | 30 |
