Flair Electronics MSS100-4V BMS BRN | High-Security Balanced Magnetic Contact, Screw-Mount, Recessed-Mount Loop, 100 VDC, Brown
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description

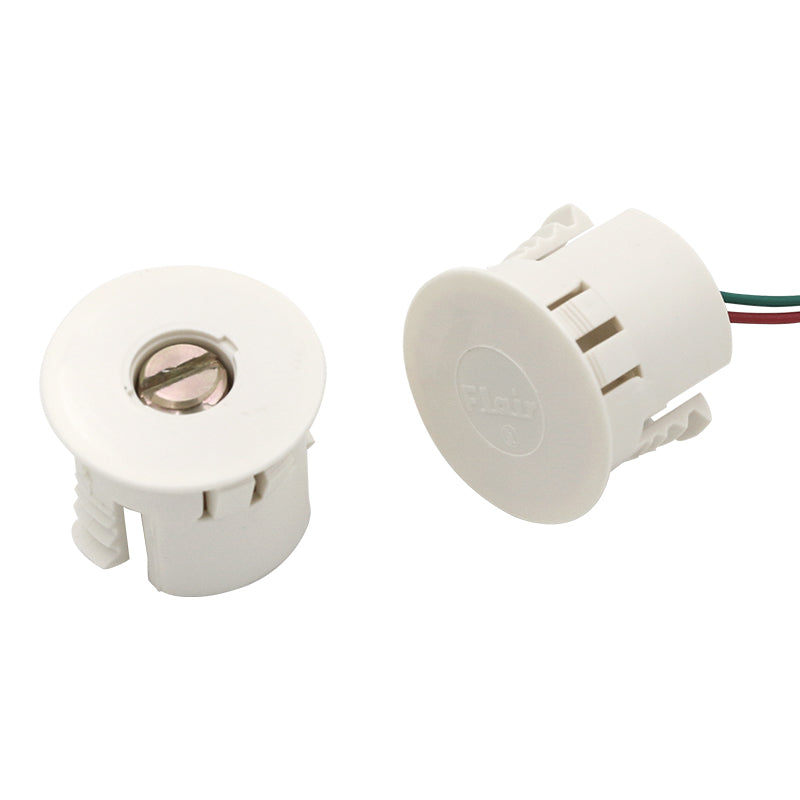

The MSS100-4V BMS high-security magnetic contact is a 1 in. recessed contact that works well in steel doors where a concealed contact is preferred. The UL-listed magnetic contact has two SPDT door switches and one SPDT magnetic tamper switch when magnet is present. There are nine color-coded wires and an adjustable rare earth magnet. The patented flair recessed case locks into several gauges of steel doors as well as wood doors. Provide your customers more than just a door switch, give them time tested inexpensive flair high-security contacts with built-in magnetic tamper.
Flair Electronics - MSS100-4V BMS BRN - Features
- 1" Dia. Recessed Magnetic Contact
- 12" #22 AWG Wire Leads
- Adjustable Rare Earth Magnet
- Self Locking in Steel and Wood
- Balanced Magnetic Configuration with Magnetic Tamper
- Colors: White, Brown, Black and Gray
- Lifetime Warranty
- Safety Approvals
Specifications
Specifications
Flair Electronics - MSS100-4V BMS BRN - Product Categories
- Security
- Intrusion Detection
- Intrusion Detection Sensors
- Contacts
Flair Electronics - MSS100-4V BMS BRN - Specifications
| Manufacturer Part Number | MSS100-4V BMS BRN |
|---|---|
| Manufacturer | Flair Electronics |
| Amperage | 50 mA |
| Color | Brown |
| Connectivity | Wired |
| Contact Configuration | DPDT |
| Contact Rating | 10 W |
| Diameter | 1 in. |
| Length | 7/8 in. |
| Loop Type | Closed, Open |
| Material | Plastic |
| Mounting Style | Recessed-Mount |
| Mounting Type | Screw-Mount |
| Mounting | RECESSED |
| Power Source | Electrical |
| Product Type | High-Security Balanced Magnetic Contact |
| Special Rating | UL Listed |
| Standard Gap | 0 to 3/8 in. |
| Voltage | 100 VDC |
