Flair Electronics MSS100-4Y WHT | Magnetic Contact, Self-Locking Mo...
Description
Description

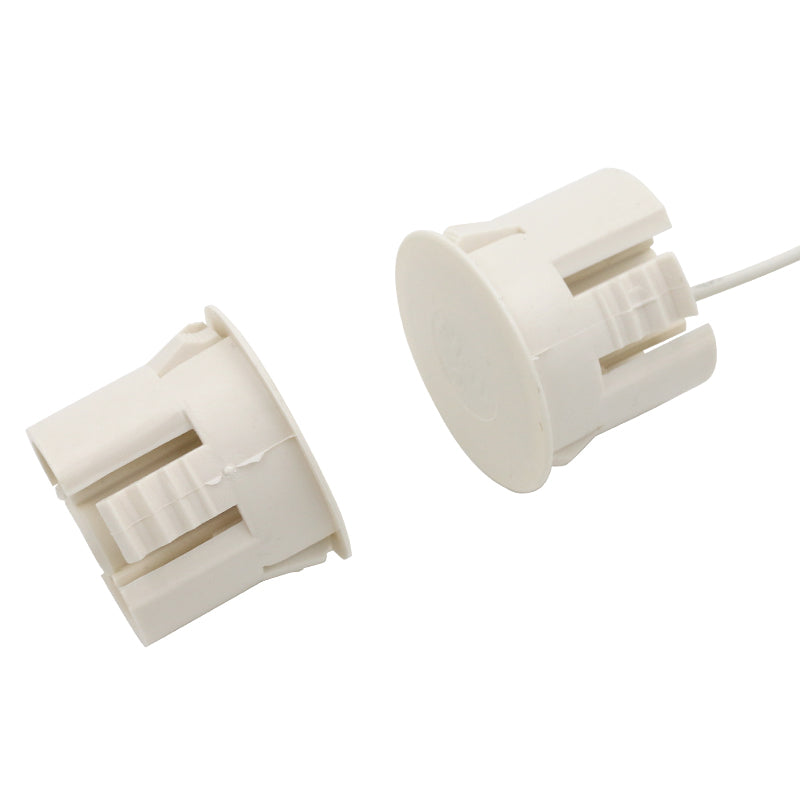

The MSS100-4Y BMS High Security Magnetic Contact is a 1 in. recessed contact that works well in steel doors where a concealed contact is preferred. The UL Listed magnetic contact has one SPDT door switch and one SPDT magnetic tamper switch when magnet is present. There are six color-coded wires and an adjustable rare earth magnet. The patented Flair recessed case locks into several gauges of steel doors as well as wood doors. Provide your customers more than just a door switch, give them time tested inexpensive Flair high security contacts with built-in magnetic tamper.
Specifications
Specifications
Flair Electronics - MSS100-4Y WHT - Product Categories
- Security
- Intrusion Detection
- Intrusion Detection Sensors
- Contacts
Flair Electronics - MSS100-4Y WHT - Specifications
| Manufacturer Part Number | MSS100-4Y WHT |
|---|---|
| Manufacturer | Flair Electronics |
| Amperage | 0.2 A |
| Color | White |
| Configuration | DPDT |
| Connectivity | Wired |
| Contact Configuration | DPDT |
| Contact Rating - Current | 50 mA Max |
| Contact Rating - Voltage | 100 VDC |
| Contact Rating | 3 W |
| Contact Resistance | 0.1 |
| Diameter | 1 in. |
| Length | 7/8 in. |
| Loop Type | 2 Closed, 2 Open |
| Mounting Style | Recessed-Mount |
| Mounting Type | Self-Locking-Mount |
| Mounting | Recessed |
| Power Source | Electrical |
| Product Type | Magnetic Switch Contact |
| Size | LxDia: 0.87 x 1 in. |
| Special Rating | UL Listed |
| Standard Gap | 1/2 in. |
| Voltage | 30 VAC/DC |
