Flair Electronics MSS100-7 WHT | High-Security Magnetic Contact, Sc...
Description
Description

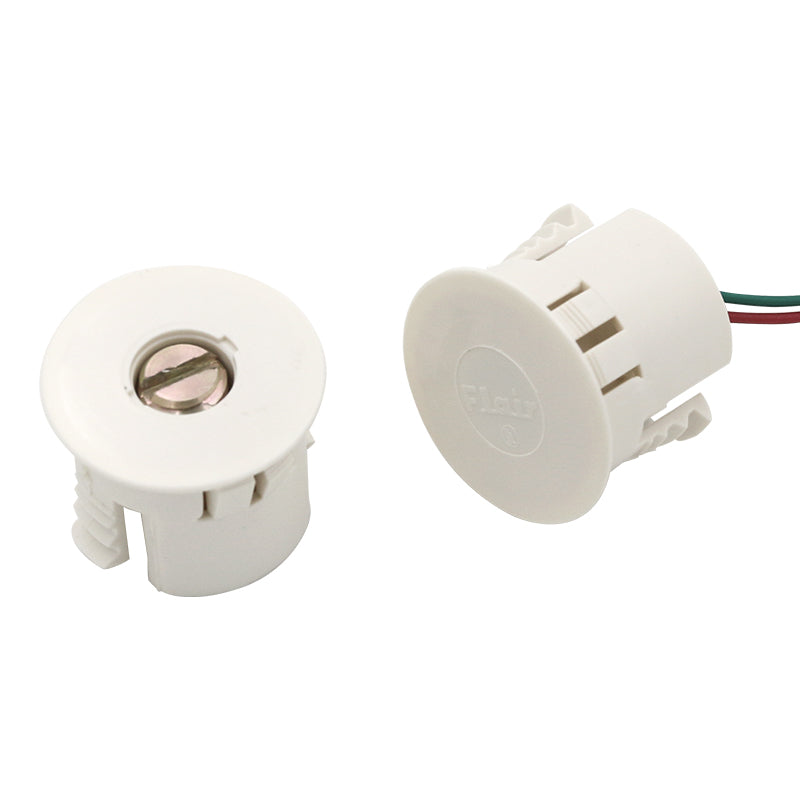

The MSS100-7 BMS high-security magnetic contact is a 1 in. recessed contact that works well in steel doors where a concealed contact is preferred. The UL-listed magnetic contact has one CC door switch and one OC magnetic tamper switch when magnet is present. There are three color-coded wires and an adjustable rare earth magnet. The patented flair recessed case locks into several gauges of steel doors. Provide your customers more than just a door switch, give them time tested inexpensive flair high-security contacts with built-in magnetic tamper.
Flair Electronics - MSS100-7 WHT - Features
- 1" Dia. Recessed High Security Balanced Magnetic Contact
- 12" #22 AWG Wire Leads
- 1" Dia. Recessed Adjustable Rare Earth Magnet in Anodized Aluminum Housing
- Self Locking in Steel and Wood
- Colors: White, Brown, Black and Gray
- Lifetime Warranty
- Safety Approvals
Specifications
Specifications
Flair Electronics - MSS100-7 WHT - Product Categories
- Security
- Intrusion Detection
- Intrusion Detection Sensors
- Contacts
Flair Electronics - MSS100-7 WHT - Specifications
| Manufacturer Part Number | MSS100-7 WHT |
|---|---|
| Manufacturer | Flair Electronics |
| Amperage | 50 mA |
| Color | White |
| Configuration | SPDT |
| Connectivity | Wired |
| Contact Configuration | SPDT |
| Contact Rating - Current | 50 mA Max |
| Contact Rating - Voltage | 130 VDC |
| Contact Rating | 10 W |
| Diameter | 1 in. |
| Length | 0.9 in. |
| Loop Type | Open, Closed |
| Material | Plastic |
| Mounting Style | Recessed-Mount |
| Mounting Type | Screw-Mount |
| Mounting | RECESSED |
| Power Source | Electrical |
| Product Type | Magnetic Switch Contact |
| Size | LxDia: 0.9 x 1 in. |
| Special Rating | UL Listed |
| Standard Gap | 3/8 to 5/8 in. |
| Voltage | 130 VDC |
