Flair Electronics MSS10019 | Magnetic Switch, Surface-Mount, Closed...
Description
Description

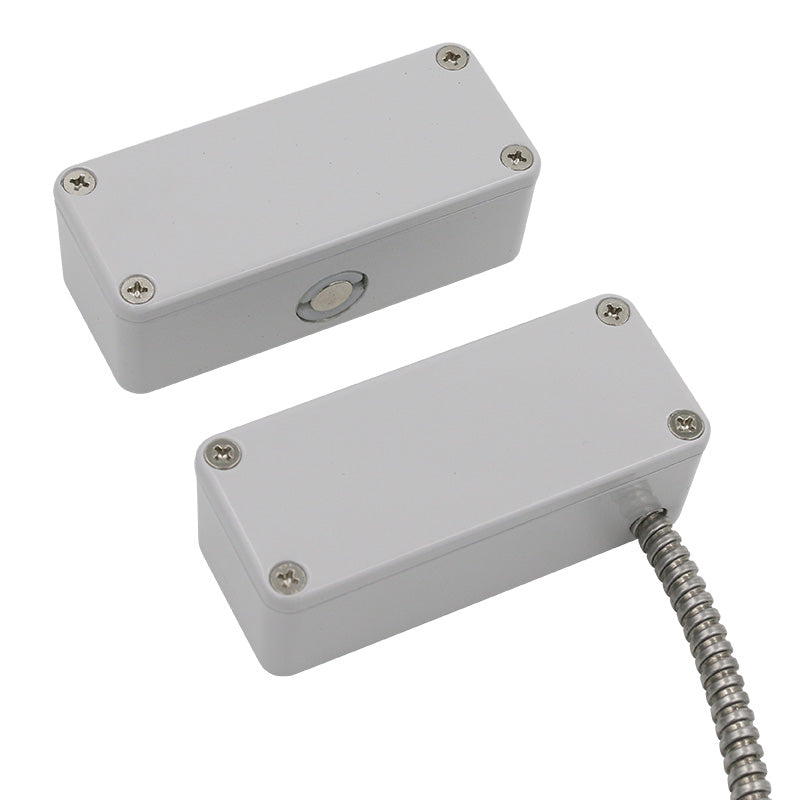

The MSS100-19 BMS High-Security Magnetic Contact is a 3 3/4 in. long heavy-duty surface-mount contact that works on steel doors where an industrial contact is preferred. This magnetic contact has one CC door switch and one OC magnetic tamper switch when magnet is present as well as a internal coil for remotely testing switches. There are five color-coded wires and a surface-mount rare earth magnet. Armored cable, 18 in. long and epoxy sealed electronics make it impervious to harsh environments. Provide your customers more than just a door switch, give them time tested inexpensive Flair high-security contacts with built-in magnetic tamper.
Specifications
Specifications
Flair Electronics - MSS10019 - Product Categories
- Security
- Intrusion Detection
- Intrusion Detection Sensors
- Contacts
Flair Electronics - MSS10019 - Specifications
| Manufacturer Part Number | MSS10019 |
|---|---|
| Manufacturer | Flair Electronics |
| Amperage | 50 mA |
| Color | Gray |
| Connectivity | Wired |
| Contact Rating | 10 W |
| Height | 1-1/4 in. |
| Length | 3-3/4 in. |
| Loop Type | Closed |
| Material | Aluminum |
| Mounting Style | Surface-Mount |
| Power Source | Electrical |
| Product Type | Balanced Magnetic Switch |
| Standard Gap | 0 to 1/2 in. |
| Voltage | 100 VDC |
| Width | 1-1/2 in. |
