Flair Electronics PFC48 WHT | Magnetic Contact, Self-Locking-Mount,...
Description
Description

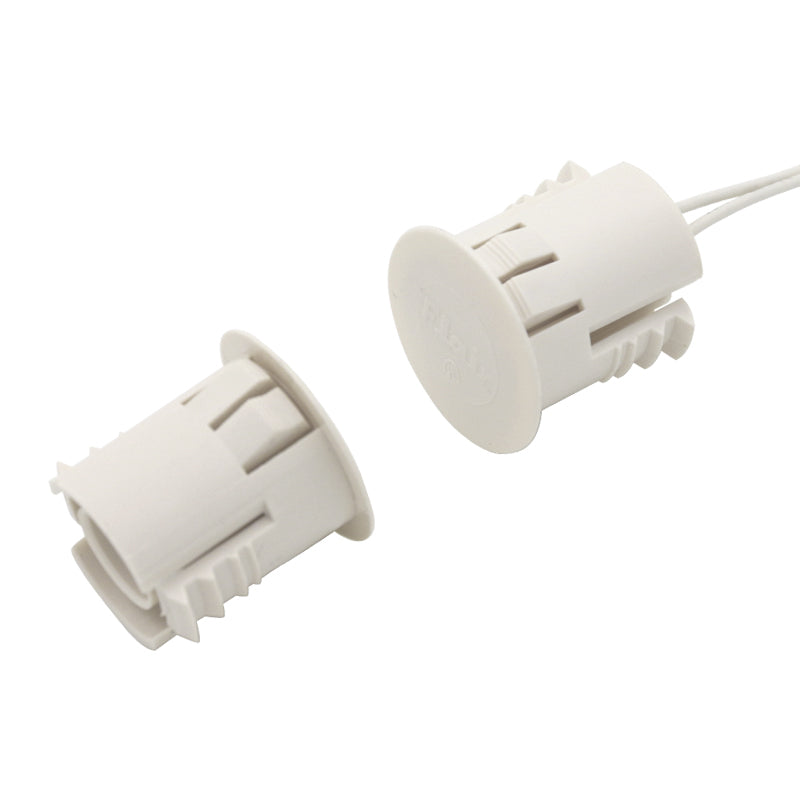

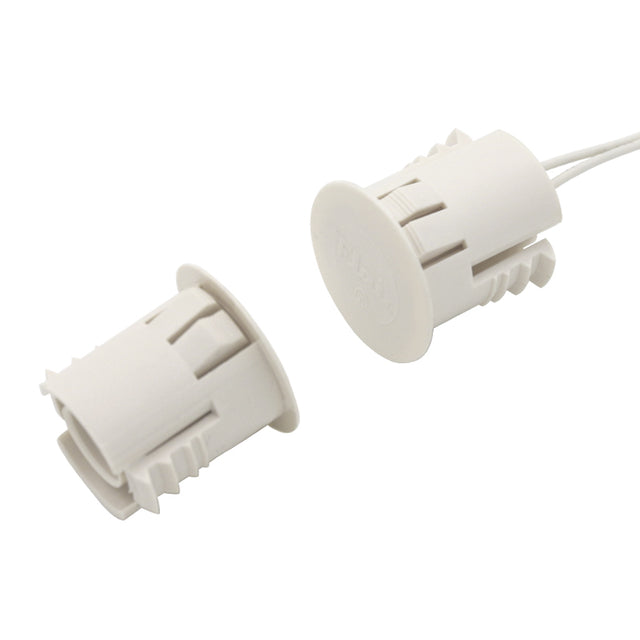

The PFC48, PFC41 and PFC42 Series of contacts are strong commercial-grade 3/4 in. Dia recessed magnetic contacts. The patented flair recessed case locks into several gauges of steel doors as well as wood doors. Standard electrical configurations are NC, NO, SPDT and DPDT. Regular gap in a steel door is 1/2 in. and wide gap is 1 in. This series of contacts can be customized by adding resistors, longer wire and even company logo. When you need a strong economical recessed contact nothing beats our PFC48, PFC41 and PFC42 Series.
Flair Electronics - PFC48 WHT - Features
- 3/4" Dia. Recessed Magnetic Contact
- 12" #22 AWG Wire Leads
- Rare Earth Magnet
- Self Locking in Steel and Wood
- E.O.L. Resistors, Diodes and Supervisory Loops Available
- Contacts and Magnets Available Separately
- Colors: White, Brown, Black and Gray
- Lifetime Warranty
- Safety Approvals
Specifications
Specifications
Flair Electronics - PFC48 WHT - Product Categories
- Security
- Intrusion Detection
- Intrusion Detection Sensors
- Contacts
Flair Electronics - PFC48 WHT - Specifications
| Manufacturer Part Number | PFC48 WHT |
|---|---|
| Manufacturer | Flair Electronics |
| Amperage | 0.5 A |
| Color | White |
| Connectivity | Wired |
| Contact Configuration | 1NO |
| Contact Rating | 10 W |
| Contact Resistance | 0.1 |
| Diameter | 3/4 in. |
| Length | 0.9 in. |
| Loop Type | Closed |
| Mounting Style | Recessed-Mount |
| Mounting Type | Self-Locking-Mount |
| Power Source | Electrical |
| Product Type | Magnetic Contact |
| Special Rating | UL Listed |
| Standard Gap | 1/2 in. |
| Voltage | 100 VAC/DC |
