Brand: Flair Electronics | SKU: 746626

Flair Electronics PFC48Y BMS WHT | High-Security Balanced Magnetic Contact, Screw-Mount, Recessed-Mount, Closed, Open Loop, 100 VDC

Regular price $73.62
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

Flair Electronics PFC48Y BMS WHT | High-Security Balanced Magnetic Contact, Screw-Mount, Recessed-Mount, Closed, Open Loop, 100 VDC

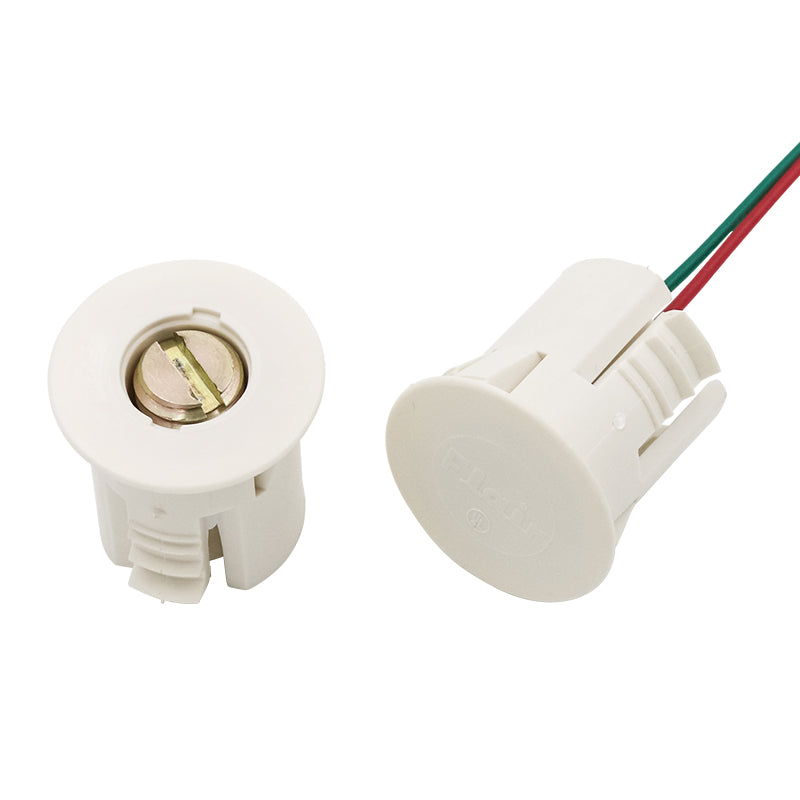

The PFC48Y BMS high-security magnetic contact is a 3/4 in. recessed contact that works well in wood and steel doors where a small concealed contact is preferred. The UL-listed magnetic contact has two CC door switches and one OC magnetic tamper switch when magnet is present. There are four color-coded wires and an adjustable rare earth magnet. The patented Flair recessed case locks into several gauges of steel doors as well as wood doors. Provide your customers more than just a door switch, give them time tested inexpensive Flair high-security contacts with built-in magnetic tamper.

Flair Electronics - PFC48Y BMS WHT - Features

  • 3/4" Dia. Recessed Magnetic Contact
  • 12" #22 AWG Wire Leads
  • Self Locking in Steel and Wood
  • Balanced Magnetic Configuration with Magnetic Tamper
  • Colors: White, Brown, Black and Gray
  • Lifetime Warranty
  • Safety Approvals
  • Rare Earth Magnet

Specifications

Flair Electronics - PFC48Y BMS WHT - Product Categories

  • Security
  • Intrusion Detection
  • Intrusion Detection Sensors
  • Contacts

Flair Electronics - PFC48Y BMS WHT - Specifications

Manufacturer Part NumberPFC48Y BMS WHT
ManufacturerFlair Electronics
Amperage50 mA
ColorWhite
ConnectivityWired
Contact ConfigurationSPST
Contact Rating10 W
Diameter3/4 in.
Length0.87 in.
Loop TypeClosed, Open
MaterialPlastic
Mounting StyleRecessed-Mount
Mounting TypeScrew-Mount
Power SourceElectrical
Product TypeHigh-Security Balanced Magnetic Contact
Special RatingUL Listed
Standard Gap3/8 to 5/8 in.
Voltage100 VDC
