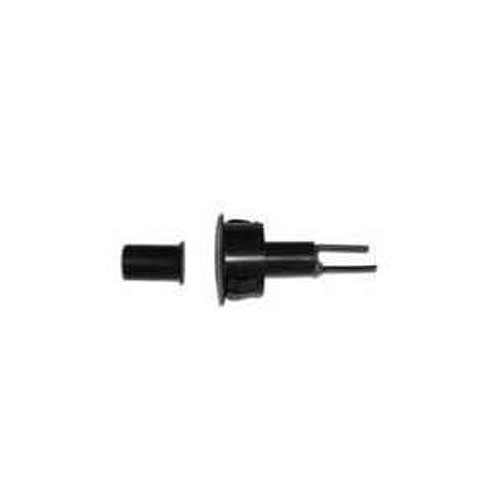

George Risk Industries (G.R.I.) 120T-12WG-W | 3/4" Switch & 3/8" Magnet Recessed Switch Set, White, Wide Gap 3/4", Closed Loop, M-5 Magnet
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
George Risk Industries (G.R.I.) 120T-12WG-W | 3/4" Switch &...
Description
Description
The 120T/4473 requires that a 3/4" hole be drilled for the switch and 3/8" hole for the magnet.
The 3/4" switch mounting is desirable since the extra wire and connections can be more easily inserted into the larger hole for concealment.
Also, should the need arise for testing or replacement, it would be easy to pull the switch, extend the extra wire and access the original connections.
Installation is further enhanced by using a smaller 3/8" diameter magnet to avoid the need to center a larger hole in a 1" to 1 1/2" thick door or window.
This will allow you to offset the magnet should it be required.
The 120T/4473 switch set was developed for and should only be used in openings with wooden or aluminum frames.
Specifications
Specifications
GRI - 120T-12WG-W - Additional Information
- Press To Fit Also Available in Stubby Version
- Hermetically Sealed
- Plated Contacts Resist Sticking or Freezing
GRI - 120T-12WG-W - Specifications
| Mounting | RECESSED |
|---|---|
| UNSPSC Code | 46171600 |
| Brand Name | George Risk Industries, Inc. |
| Manufacturer | George Risk Industries |
| Manufacturer Part Number | 120T-12WG-W |
| Product Model | 120T-12WG-W |
| Product Name | 120T-12WG-W Magnetic Contact |
| Product Series | 120T |
| Product Type | Magnetic Contact |
| Category | Intrusion & Smart Home, Intrusion Contacts, Other Intrusion Contacts |
| Country of origin | United States. Country of origin is subject to change. |
GRI - 120T-12WG-W - Physical Characterstics
| Diameter | 0.4" |
|---|
GRI - 120T-12WG-W - Technical Information
| Contact Configuration | N.O. |
|---|
GRI - 120T-12WG-W - Warranty
| Limited Warranty | Lifetime |
|---|
