Brand: George Risk Industries - Usa
|
SKU:
417721

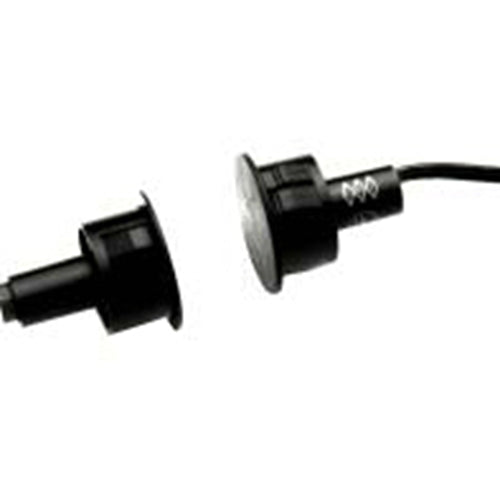

George Risk Industries (G.R.I.) 180-12-B - CONTACT - DOOR CONTACT 3/4 RECESSED
Regular price
$66.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
George Risk Industries (G.R.I.) 180-12-B - CONTACT - DOOR CONTACT 3...
Regular price
$66.58
Unit price
Brand: George Risk Industries - Usa
|
SKU:
417721
Regular price
$66.58
Unit price
Shipping calculated at checkout.
Description
Description
The GRI 180 Series is the industry standard 3/4" diameter recessed steel door switch set with 12" leads. The 184 Series is a 1" diameter switch set. The innovative GRI 8080-T Series is a 3/4" diameter recessed switch set designed for residential, commercial and industrial steel doors and frames. The shorter length and the introduction of PC board type terminals makes the installation of the set quick and simple with no soldering, B connectors or tape to catch during installation or removal, reducing the cost of installation and creating greater profitability.
Main Features
- Lifetime Warranty
- Colors: White, Brown, Grey or Black
- UL and ULC Approved
- 180-12 & 184-12 UL 10C Fire Rated
- Available in Closed Loop, Open Loop and SPDT
- 3/4" and 1" Diameter Mounting
- Standard 12" Leads or Terminals
- Self-Locking
- Solid, One Piece Design
- 7/8" Diameter also Available - Call Factory
- Switches or Magnets are Available Separately
- Standard 1/2"+ Gap on Steel
- Wide Gap 1"+ Gap on Steel
- Supervisory Loops Available
Specifications
Specifications
Specifications
| Manufacturer | George Risk Industries |
|---|---|
| Manufacturer Part Number | 180-12-B |
| Product Model | 180-12 |
| Product Name | 180-12 Magnetic Contact |
| Product Series | 180 |
| Product Type | Magnetic Contact |
| Color | Brown |
| Material | Steel |
| Additional Information | Maximum Switching Voltage: 200VDC, Maximum Switching Current: 0.400A, Maximum Contact Rating: 10W, Electrical Configuration: N/O, Standard 1/2"+ gap on steel, Wide gap 1"+ gap on steel, Steel door switch, Self-locking, Closed loop |
| Limited Warranty | Lifetime |
