Brand: George Risk Industries - Usa
|
SKU:
733924

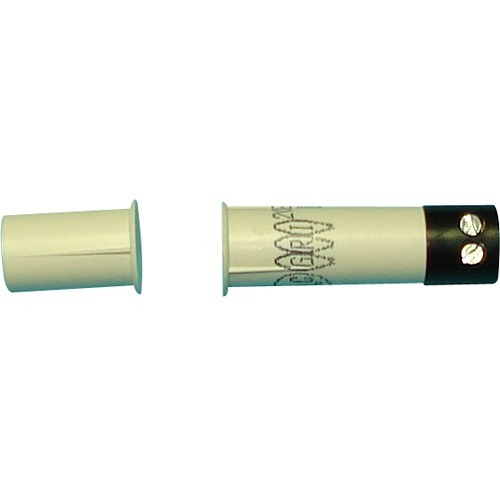

George Risk Industries (G.R.I.) 2020-TWG-B | Recessed Press Fit Switch Set, Closed Loop, Brown, With 12" Lead
Regular price
$6.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
George Risk Industries (G.R.I.) 2020-TWG-B | Recessed Press Fit Swi...
Regular price
$6.81
Unit price
Brand: George Risk Industries - Usa
|
SKU:
733924
Regular price
$6.81
Unit price
Shipping calculated at checkout.
Description
Description
George Risk Industries (G.R.I.) 2020-TWG-B | Recessed Press Fit Switch Set, Closed Loop, 1No, 160 Volt Dc, 0.4 Ampere, 10 Watt, 0.15 Ohm, 1" Width Gap, 3/8" Diameter, Brown, With 12" Lead
G.R.I.'s 3/8" recessed press-to-fit contacts can be installed in many different positions to accommodate a variety of applications.
The switch and magnet can be mounted end-to end within an imaginary arc around the switch, or parallel to the switch.
When the application calls for a wide gap switch, install the painted end of the bare magnet facing the switch as they are polarity sensitive.
Specifications
Specifications
GRI - 2020-TWG-B - Additional Information
- 3/8" Recessed Press Fit Switch
- Shorter length case
- Softer fill to protect fragile reed
- Standard 12" leads or terminal block
- Hermetically sealed
- Plated contacts resist sticking or freezing
- Extra wide gap bare magnets
GRI - 2020-TWG-B - Specifications
| Mounting | RECESSED |
|---|---|
| UNSPSC Code | 46171600 |
| Brand Name | George Risk Industries, Inc. |
| Manufacturer | George Risk Industries |
| Manufacturer Part Number | 2020-TWG-B |
| Product Model | 2020-TWG |
| Product Name | 2020-TWG Magnetic Contact |
| Product Series | 2020-T |
| Product Type | Magnetic Contact |
| Category | Intrusion & Smart Home, Intrusion Contacts, Recessed Contacts |
| Country of origin | United States. Country of origin is subject to change. |
GRI - 2020-TWG-B - Physical Characterstics
| Product Color | Brown |
|---|
GRI - 2020-TWG-B - Technical Information
| Standard Gap | 1" |
|---|
GRI - 2020-TWG-B - Warranty
| Limited Warranty | Lifetime |
|---|
