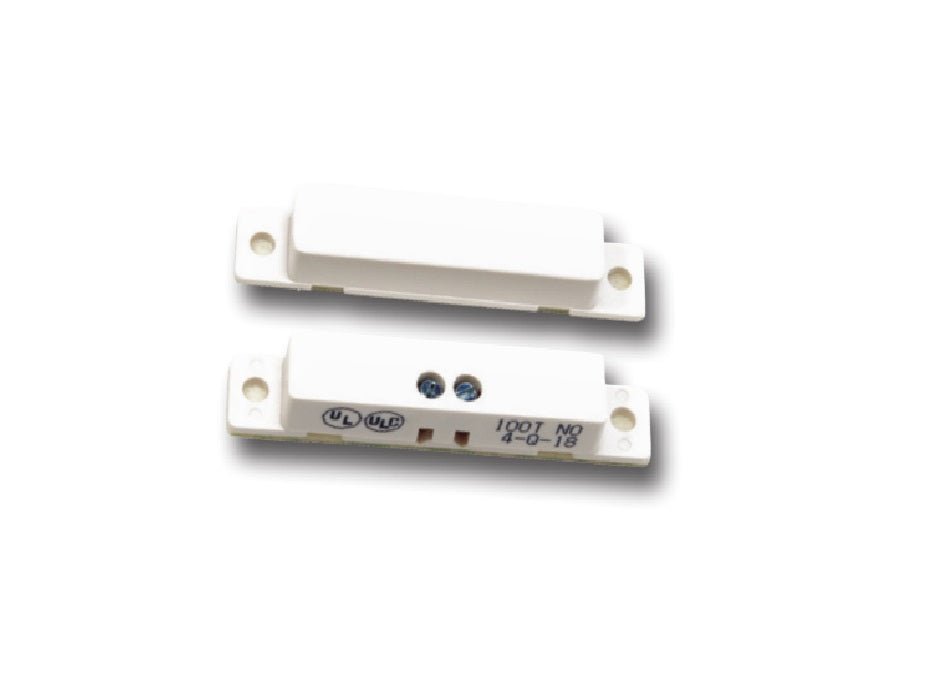

George Risk Industries - Usa 100-T-W W/1K | Mini Surface Mount and 1k Resistor- 10-Pack

Magnetic contacts with end of line resistors are available in most GRI products where size restrictions permit. Resistor only packs can be custom designed to your specifications using commonly available values. Available in or without a case. Our very popular 6644 features two 1K 1/8 watt 5% carbon film resistors in our 50R brown case- with two blue and two black- 12-inch leads. The ideal position for the end of line resistor (E.O.L.) at the farthest point from the panel in the zone loop. This will confirm the integrity of most- if not all- of the wiring between the panel and the last device installed on the zone loop- thus preventing and intentional or accidental compromise of the security zone loop. The closer the E.O.L. is mounted to the panel in the wiring loop- the greater the possibility of compromise of the unprotected loop wiring after the resistor position. Door and window contacts with build-in resistors are the absolute best and easiest way of placing the end of line resistor in that ideal position. Resistors are available in most all popular values in 1/8 and 1/4 watt depending on size constraints. Multi-resistor configurations in conjunction with build-in switcher are offered- as well as resistor only packages. Most popular security panel resistor values are available. Please state value when ordering. Contact factory for ordering information. .
