Brand: Greenlee-Textron
|
SKU:
733664

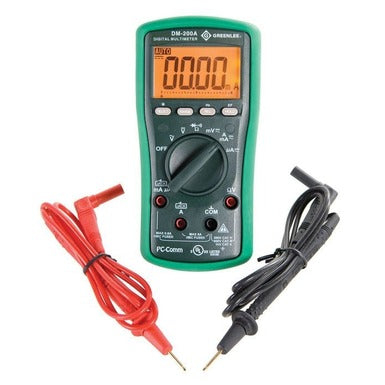

Greenlee-Textron DM-200A | 6,000-Count Digital Multimeter, 1000V, 8A (DM-200A)
Regular price
$156.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Greenlee-Textron DM-200A | 6,000-Count Digital Multimeter, 1000V, 8...
Regular price
$156.09
Unit price
Brand: Greenlee-Textron
|
SKU:
733664
Regular price
$156.09
Unit price
Shipping calculated at checkout.
Description
Description
Greenlee-Textron DM-200A | 6,000-Count Digital Multimeter, 1000V, 8A (DM-200A)
Greenlee-Textron - DM-200A - Features
- Measures voltage, current, resistance and frequency
- Tests continuity and diodes
- Backlit LCD with 6,000 count display
- Two voltage detection modes - non-contact or using a single test lead
- BeepJack warns when test leads are incorrectly inserted in current measurement terminals
- Automatic and manual range selection
- Relative offset mode to see changes in measurements
- Data hold
- Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
- Lifetime Limited Warranty
- Accessories included: (2)1.5V AAA batteries, bead temperature probe (DM-210A, DM-510A only, 400°F/204°C max), test leads, protective boot
Specifications
Specifications
Greenlee-Textron - DM-200A - Specifications
| Manufacturer Part Number | DM-200A |
|---|---|
| Brand | Greenlee-Textron |
| UPC | 0783310087403 |
| Item Description | 6,000-Count Digital Multimeter, 1000V, 8A (DM-200A) |
| Amperage Measurement | 600, 6000?A; 60, 600mA; 6, 8A |
| Battery | (2) 1.5 V AAA |
| Capacitance | 60, 600 nF; 6, 60, 600, 3000?F |
| Display | Backlit LCD With 6,000 Count |
| Frequency Measurement | 10Hz - 50kHz Sine Wave, 5Hz - 999.9kHz Logic Level Square Wave |
| Includes | (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot |
| Measurement Category | CAT IV 300 V, CAT III 600 V, CAT II 1000 V |
| Replacement Part | TSG-3 Sure-Grip Test Leads |
| Resistance Measurement | 600 ?; 6, 60, 600 k?; 6, 60 M? |
| Standard | CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed |
| Sub Brand | ESM |
| Temperature Rating | K Type, -58 To 1832°F (-50 To 1000°C) |
| Type | Digital |
| Voltage Measurement | 60, 600 mV; 6, 60, 600, 1000V |
