Brand: Greenlee-Textron
|
SKU:
748629

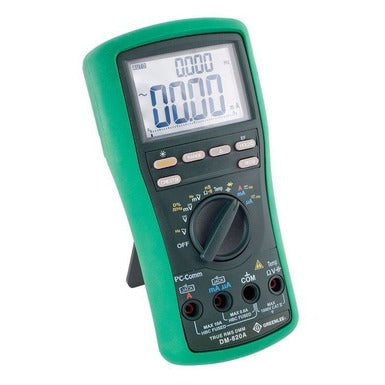

Greenlee-Textron DM-820A | 10,000-Count Digital Multimeter, 1000V, 10A (DM-820A)
Regular price
$383.57
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Greenlee-Textron DM-820A | 10,000-Count Digital Multimeter, 1000V, ...
Regular price
$383.57
Unit price
Brand: Greenlee-Textron
|
SKU:
748629
Regular price
$383.57
Unit price
Description
Description
Greenlee-Textron DM-820A | 10,000-Count Digital Multimeter, 1000V, 10A (DM-820A)
Greenlee-Textron - DM-820A - Features
- True RMS for no-compromise accuracy
- Measures voltage, current,resistance, Capacitance And Frequency
- Tests Continuity And Diodes
- Backlit LCD With Dual 10,000 Count Displays
- BeepJack Warns When Test Leads Are Incorrectly Inserted In Current Measurement Terminals
- Automatic And Manual RangeSelection
- Relative Offset Mode To See Changes In Measurements
- Data Hold
- Use Optional USB InterfaceDMSC-9U For Direct-To-PC Logging
- Lifetime Limited Warranty
- Crest Capture (Peak Hold)Plus Recording Of Max, Min, Max-Min Average
- Two Voltage Detection Modes - Non-Contact Or Using A Single Test Lead
- One Temperature Measurement Using A Type K Thermocouple
- Conductance Measurement
- Accessories included: (1)9V battery, bead temperature probe (DM-820A, DM-830A only, 400°F/204°C max), testleads, protective boot, carrying case
Specifications
Specifications
Greenlee-Textron - DM-820A - Specifications
| Manufacturer Part Number | DM-820A |
|---|---|
| Brand | Greenlee-Textron |
| UPC | 0783310087441 |
| Item Description | 10,000-Count Digital Multimeter, 1000V, 10A (DM-820A) |
| Amperage Measurement | 600, 6000?A; 60, 600mA; 6, 10A |
| Battery | (1) 9 V |
| Capacitance | 60, 600nF; 6, 60, 600?F; 6, 25 mF |
| Conductance | 99.99 nS |
| Display | Backlit LCD With Dual 10,000 Count |
| Frequency Measurement | 15Hz- 50kHz Sine Wave, 5Hz - 1MHz Logic Level Square Wave |
| Includes | (1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400 DEG F/204 DEG C Max), Test Leads, Protective Boot, Carrying Case |
| Measurement Category | CAT IV, 1000 V |
| Replacement Part | TC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe (Included With DM-820A, DM-830A) |
| Resistance Measurement | 600?; 6, 60, 600 k?; 6, 60 M? |
| Standard | CAT IV, C/UL US Listed, TRUE RMS, CE Listed |
| Temperature Rating | K Type, -58 To 1832°F (-50 To 1000°C) |
| Type | Digital |
| Voltage Measurement | 60, 600 mV; 9.999, 99.99, 999.9 V |
