Brand: Hammond Manufacturing
|
SKU:
889933
Hammond Manufacturing 1418G8 | NEMA 12 Wallmount Enclosure with Panel, 16" x 16" x 8", Steel, Gray
Regular price
$603.53
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing 1418G8 | NEMA 12 Wallmount Enclosure with Pan...
Regular price
$603.53
Unit price
Brand: Hammond Manufacturing
|
SKU:
889933
Regular price
$603.53
Unit price
Shipping calculated at checkout.
Description
Description

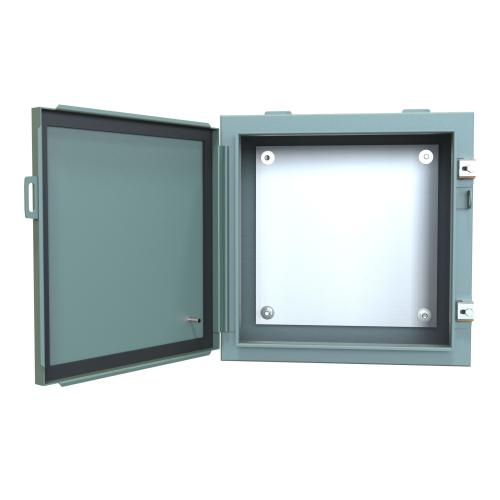

Hammond Manufacturing 1418G8 | NEMA 12 Wallmount Enclosure with Panel, 16" x 16" x 8", Steel, Gray
This NEMA 12-rated wallmount enclosure from Hammond Manufacturing is built from steel and includes an inner mounting panel. Measuring 16" x 16" x 8", it is finished in ANSI 61 gray and is ideal for housing electrical components in dusty or oily indoor environments. Standards: UL 508A Type 12 and 13, CSA Type 12 and 13.
Hammond Manufacturing - 1418G8 - Features
- Standards
- UL 508A Type 12 and 13
- CSA Type 12 and 13
- Complies with
- NEMA Type 12 and 13
- IEC 60529, IP54
- Construction
- Formed 14 gauge steel bodies and doors.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Door and body stiffeners are provided in the larger enclosures for extra rigidity.
- Welded brackets provide for enclosure mounting.
- Formed lip on door and enclosure exclude flowing liquids and contaminants.
- Continuously hinged door may be removed by pulling the hinge pin.
- Door is secured with easily operated stainless steel clamps.
- Provision for padlocking.
- Oil resistant gaskets are permanently secured.
- A removable 12 gauge inner panel is included.
- Collar studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
- A literature pocket is provided for the inside of the door.
- Finish
- Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating on the inside and outside.
- Removable inner panel is finished in white powder coating.
Specifications
Specifications
Hammond Manufacturing - 1418G8 - Applications
- Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- Provides a degree of protection from falling dirt, dust, oil and water.
Hammond Manufacturing - 1418G8 - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Electrical
- Mild Steel
- Wallmount Enclosures
Hammond Manufacturing - 1418G8 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | 1418G8 |
| Item Description | NEMA 12 Wallmount Enclosure with Panel, 16" x 16" x 8", Steel, Gray |
| UNSPSC Code | 24102001 |
| Part Number | 1418G8 |
| Series | Type 12 Mild Steel Wallmount Enclosure (1418 Series) |
| Size H x W x D | 16 in x 16 in x 8 in (406 mm x 406 mm x 203 mm) |
| Shipping Weight | 34 lbs(15.42 kg) |
| UNSPSC | 39121324 |
| UPC | 623980366401 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Packaging Type | Box |
