Brand: Hammond Manufacturing
|
SKU:
889934

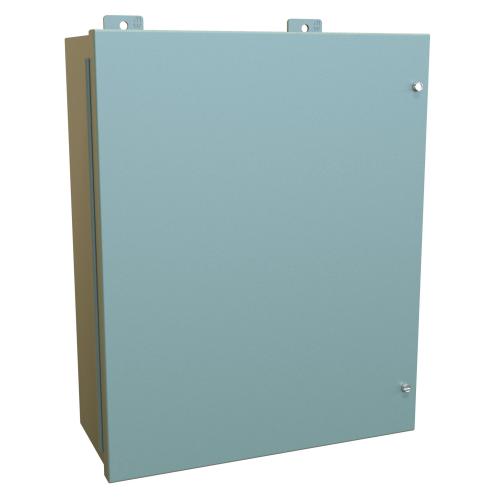

Hammond Manufacturing 1418JC7 | NEMA 12 Large JIC Enclosure with Panel, 20" x 16" x 7", Steel/Gray
Regular price
$624.97
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing 1418JC7 | NEMA 12 Large JIC Enclosure with Pa...
Regular price
$624.97
Unit price
Brand: Hammond Manufacturing
|
SKU:
889934
Regular price
$624.97
Unit price
Shipping calculated at checkout.
Description
Description
Hammond Manufacturing 1418JC7 | NEMA 12 Large JIC Enclosure with Panel, 20" x 16" x 7", Steel/Gray
The Hammond 1418JC7 JIC enclosure offers robust steel protection in a 20" x 16" x 7" format. Compliant with UL 508A Type 12 standards, it’s designed for industrial control panels and electrical systems. It includes a mounting panel and ensures equipment is housed in a dust-tight, oil-resistant enclosure.
Hammond Manufacturing - 1418JC7 - Features
- Standards
- UL 508A Type 12
- Complies with
- NEMA Type 12
- EC 60529, IP54
- Construction
- Formed from 14 gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Door and body stiffeners are provided in the larger enclosures for extra rigidity.
- Welded brackets provide for enclosure mounting.
- Continuously hinged cover is secured with plated screws, threaded into sealed wells.
- Oil resistant gaskets are permanently secured.
- A removable 12 gauge inner panel is included.
- Collar studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
- A literature pocket is provided for the inside of the door.
- Finish
- Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
- Removable inner panel is finished in white powder coating.
- Designed to House Electrical, Electronic, Hydraulic or Pneumatic Controls and Instruments
- Provides a Degree of Protection from Falling Dirt, Dust, Oil and Water
- Smooth, Continuously Welded Seams without Knockouts, Cutouts or Holes
- Door and Body Stiffeers are Provided in the Larger Enclosures for Extra Rigidity
- Welded Brackets Provide for Enclosure Mounting
- Continuously Hinged Cover is Secured with Plated Screws, Threaded into Sealed Wells
- Oil Resistant Gaskets are Permanently Secured
- A Literatureocket is Provided for the Inside of the Door
- RoHS Compliant
Specifications
Specifications
Hammond Manufacturing - 1418JC7 - Applications
- Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- Provides a degree of protection from falling dirt, dust, oil and water.
Hammond Manufacturing - 1418JC7 - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Electrical
- Mild Steel
- Wallmount Enclosures
Hammond Manufacturing - 1418JC7 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | 1418JC7 |
| Item Description | NEMA 12 Large JIC Enclosure with Panel, 20" x 16" x 7", Steel/Gray |
| UNSPSC Code | 24102001 |
| Part Number | 1418JC7 |
| Series | Type 12 Mild Steel Wallmount Enclosure (1418J Series) |
| Size H x W x D | 20 in x 16 in x 7 in (508 mm x 406 mm x 178 mm) |
| Shipping Weight | 38 lbs(17.24 kg) |
| UNSPSC | 39121324 |
| UPC | 623980376707 |
| UL File # | E65324 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Packaging Type | Box |
