Brand: Hammond Manufacturing
|
SKU:
10097650

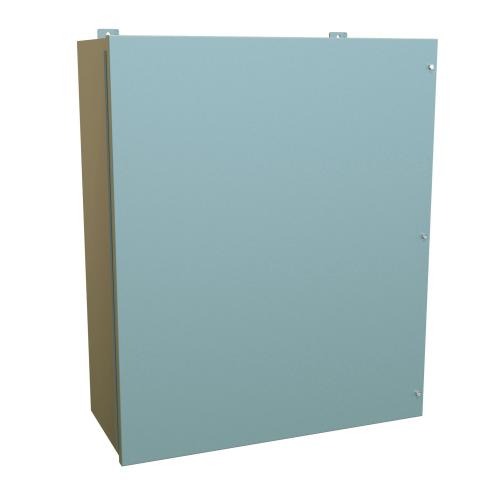

Hammond Manufacturing 1418JM13 | NEMA 12 Large JIC Enclosure with Panel, 36" x 30" x 13", Steel/Gray
Regular price
$1,503.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing 1418JM13 | NEMA 12 Large JIC Enclosure with P...
Regular price
$1,503.32
Unit price
Brand: Hammond Manufacturing
|
SKU:
10097650
Hammond Manufacturing 1418JM13 | NEMA 12 Large JIC Enclosure with Panel, 36" x 30" x 13", Steel/Gray
Regular price
$1,503.32
Unit price
Shipping calculated at checkout.
Description
Description
Hammond Manufacturing 1418JM13 | NEMA 12 Large JIC Enclosure with Panel, 36" x 30" x 13", Steel/Gray
Hammond’s 1418JM13 is a NEMA 12 large JIC enclosure measuring 36" x 30" x 13", built from rugged steel and finished in gray. It complies with UL 508A Type 12 standards, offering protection against dirt, dust, and non-corrosive liquids. Suitable for indoor electrical and electronic controls, it includes a mounting panel for equipment layout flexibility.
Hammond Manufacturing - 1418JM13 - Features
- Standards
- UL 508A Type 12
- Complies with
- NEMA Type 12
- EC 60529, IP54
- Construction
- Formed from 14 gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Door and body stiffeners are provided in the larger enclosures for extra rigidity.
- Welded brackets provide for enclosure mounting.
- Continuously hinged cover is secured with plated screws, threaded into sealed wells.
- Oil resistant gaskets are permanently secured.
- A removable 12 gauge inner panel is included.
- Collar studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
- A literature pocket is provided for the inside of the door.
- Finish
- Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
- Removable inner panel is finished in white powder coating.
Specifications
Specifications
Hammond Manufacturing - 1418JM13 - Applications
- Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- Provides a degree of protection from falling dirt, dust, oil and water.
Hammond Manufacturing - 1418JM13 - Product Categories
- Industrial
- Electrical Enclosures
- Electrical Enclosures
- Electrical
- Mild Steel
- Wallmount Enclosures
Hammond Manufacturing - 1418JM13 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | 1418JM13 |
| Item Description | NEMA 12 Large JIC Enclosure with Panel, 36" x 30" x 13", Steel/Gray |
| Cover Type | Hinged |
| Material | Steel (Mild) |
| Nema Rating | Type 12 |
| UNSPSC Code | 24102001 |
| Part Number | 1418JM13 |
| Series | Type 12 Mild Steel Wallmount Enclosure (1418J Series) |
| Size H x W x D | 36 in x 30 in x 13 in (914 mm x 762 mm x 330 mm) |
| Shipping Weight | 125 lbs(56.70 kg) |
| UNSPSC | 39121324 |
| UPC | 623980366951 |
| UL File # | E65324 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Packaging Type | Box |
