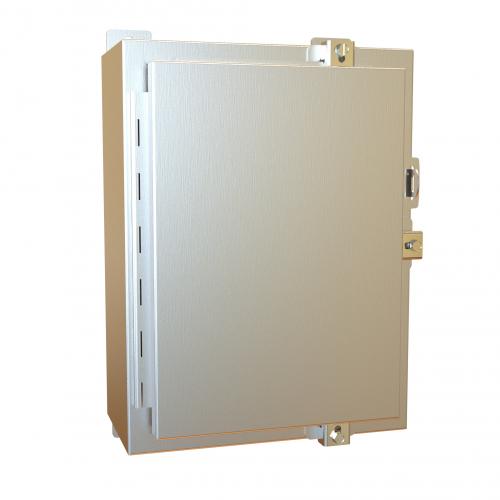

Hammond Manufacturing 1418N4S16M10 | NEMA 4X Wallmount Enclosure with Panel, 36" x 30" x 10", 316 Stainless Steel
Hammond’s 1418N4S16M10 is a NEMA 4X wallmount enclosure measuring 36" x 30" x 10", made from corrosion-resistant 316 stainless steel. Rated for UL 508A Types 3R, 4, 4X, and 12, it is suitable for harsh indoor or outdoor conditions, including washdown environments. Includes a stainless steel panel for easy equipment mounting. Ideal for food processing, chemical plants, and marine applications.
Hammond Manufacturing - 1418N4S16M10 - Features
- Standards
- UL 508A Type 3R, 4, 4X, and 12
- CSA Type 3R, 4, 4X, and 12
- Complies with
- NEMA Type 3R, 4, 4X, 12 and 13
- IEC 60529, IP66
- Construction
- Formed 14 gauge 304 or 316 stainless steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Door stiffeners are provided in the larger enclosures for extra rigidity.
- Welded brackets provide for enclosure mounting.
- Formed lip on door and enclosure excludes flowing liquids and contaminants.
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
- Door is secured with easily operated stainless steel clamps.
- Provision for padlocking.
- Seamless poured-in place gasket.
- A removable 12 gauge inner panel is included.
- Collar studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
- A literature pocket is provided for the inside of the door.
- Finish
- Cover and enclosure are natural stainless steel with a smooth brushed finish.
- Removable inner panel is finished in white powder coating.
Specifications
Specifications
Hammond Manufacturing - 1418N4S16M10 - Applications
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
Hammond Manufacturing - 1418N4S16M10 - Product Categories
- Security
- Intrusion Detection
- Intrusion Modules
- Electrical
- Stainless Steel
- Wallmount Enclosures
Hammond Manufacturing - 1418N4S16M10 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | 1418N4S16M10 |
| Item Description | NEMA 4X Wallmount Enclosure with Panel, 36" x 30" x 10", 316 Stainless Steel |
| UNSPSC Code | 46171600 |
| Part Number | 1418N4S16M10 |
| Series | Type 4X Stainless Steel Wallmount Enclosure (1418 N4 SS Series) |
| Size H x W x D | 36 in x 30 in x 10 in (914 mm x 762 mm x 254 mm) |
| Shipping Weight | 125 lbs(56.70 kg) |
| UNSPSC | 39121324 |
| UPC | 623980149189 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Packaging Type | Box |
