Brand: Hammond Manufacturing
|
SKU:
889935
Hammond Manufacturing 1418N4SSD8 | NEMA 4X Wallmount Enclosure with Panel, 20" x 20" x 8", 304 Stainless Steel
Regular price
$1,635.16
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing 1418N4SSD8 | NEMA 4X Wallmount Enclosure with...
Regular price
$1,635.16
Unit price
Brand: Hammond Manufacturing
|
SKU:
889935
Regular price
$1,635.16
Unit price
Shipping calculated at checkout.
Description
Description

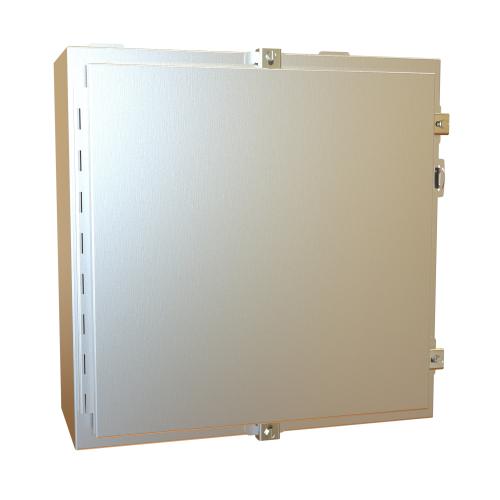

Hammond Manufacturing 1418N4SSD8 | NEMA 4X Wallmount Enclosure with Panel, 20" x 20" x 8", 304 Stainless Steel
This NEMA 4X wallmount enclosure is constructed from 304 stainless steel, ideal for harsh environments. Measures 20" x 20" x 8" and includes a removable inner panel. UL 508A and CSA certified for Type 3R, 4, 4X, and 12. Provides protection against water, corrosion, and dust. Ideal for food, pharma, and outdoor electrical installations.
Hammond Manufacturing - 1418N4SSD8 - Features
- Standards
- UL 508A Type 3R, 4, 4X, and 12
- CSA Type 3R, 4, 4X, and 12
- Complies with
- NEMA Type 3R, 4, 4X, 12 and 13
- IEC 60529, IP66
- Construction
- Formed 14 gauge 304 or 316 stainless steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Door stiffeners are provided in the larger enclosures for extra rigidity.
- Welded brackets provide for enclosure mounting.
- Formed lip on door and enclosure excludes flowing liquids and contaminants.
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
- Door is secured with easily operated stainless steel clamps.
- Provision for padlocking.
- Seamless poured-in place gasket.
- A removable 12 gauge inner panel is included.
- Collar studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
- A literature pocket is provided for the inside of the door.
- Finish
- Cover and enclosure are natural stainless steel with a smooth brushed finish.
- Removable inner panel is finished in white powder coating.
Specifications
Specifications
Hammond Manufacturing - 1418N4SSD8 - Applications
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
Hammond Manufacturing - 1418N4SSD8 - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Electrical
- Stainless Steel
- Wallmount Enclosures
Hammond Manufacturing - 1418N4SSD8 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | 1418N4SSD8 |
| Item Description | NEMA 4X Wallmount Enclosure with Panel, 20" x 20" x 8", 304 Stainless Steel |
| UNSPSC Code | 24102001 |
| Part Number | 1418N4SSD8 |
| Series | Type 4X Stainless Steel Wallmount Enclosure (1418 N4 SS Series) |
| Size H x W x D | 20 in x 20 in x 8 in (508 mm x 508 mm x 203 mm) |
| Shipping Weight | 47.5 lbs(21.55 kg) |
| UNSPSC | 39121324 |
| UPC | 623980384702 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Packaging Type | Box |
