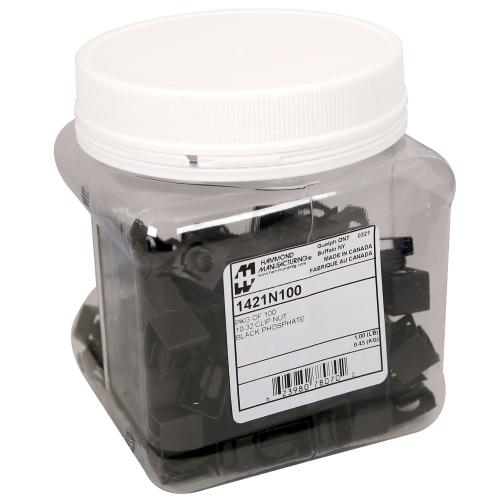

Hammond Manufacturing 1421N100 | Hardware Kit, 100 Clip Nuts
Description
Description
The 1421N100 hardware kit includes 100 heat-treated 10-32 clip nuts for non-threaded rack rails, offering quick and secure installation. The nuts undergo an austempering process for added durability. Available in both black and plated steel finishes, they are suitable for a variety of rack mounting configurations. Designed for compatibility with standard EIA-compliant rails.
Clip Nuts (Also known as Speed nuts or Timmerman nuts) are a great alternative to Cage Nuts and have many more uses. Whether your rack has non-threaded round holes or square, clip nuts are an easier solution to speed up your installation.
Hammond Manufacturing - 1421N100 - Features
- 10-32 clip nuts for non-threaded rack rails.
- Heat-treated by means of austempering.
- Available in black or plated steel finish.
- Ships in a clam shell or resealable jar, depending on quantity.
- Constructed of SAE 1050-1065 spring steel.
- Recommended torque spec 31.4 +/- 20% inch-lbs
- For use with 0.069-0.079" panel thickness.
- Hardness: HRC 38-42.
- Maximum load rating will vary depending on rail mounting and cabinet load rating.
- 1421NP are zinc plated CR3.
Specifications
Specifications
Hammond Manufacturing - 1421N100 - Product Categories
- Industrial
- Electrical Enclosures
- Electrical Enclosures
- Rack Accessories
- Hardware for Rack Mounting Solutions
Hammond Manufacturing - 1421N100 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | 1421N100 |
| Item Description | Hardware Kit, 100 Clip Nuts |
| UNSPSC Code | 24102001 |
| Part Number | 1421N100 |
| Series | 10-32 Rack Rail Clip Nuts (1421N Series) |
| Shipping Weight | 1 lbs(0.45 kg) |
| UNSPSC | 31161725 |
| UPC | 623980780702 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
