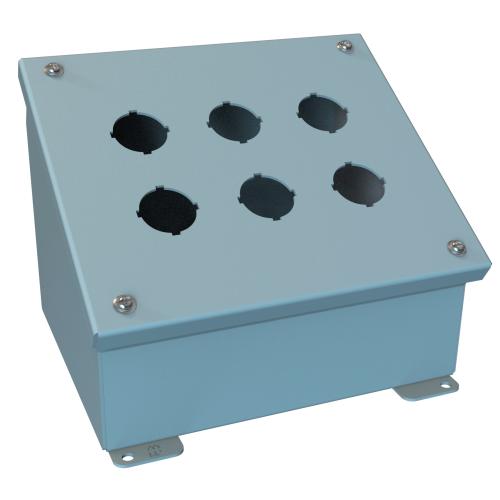

Hammond Manufacturing 1490G6 | NEMA 12 PB Consolet, 6 Push Buttons, 30.5mm, Steel/Gray
The 1490G6 push-button consolet supports six 30.5mm operator devices in a robust steel housing. It is UL 508A and CSA certified for Type 12 and 13 applications, offering protection in industrial environments. The gray finish enhances visibility while withstanding wear and corrosion. This unit is ideal for use in compact control stations requiring a simple, reliable user interface. Mounts easily for quick deployment.
Hammond Manufacturing - 1490G6 - Features
- Standards
- UL 508A Type 12 and 13
- CSA Type 12 and 13
- Complies with
- NEMA Type 12 and 13
- IEC 60529, IP54
- Appropriate components are required to maintain these standards.
- Construction
- Formed 16 gauge steel.
- Smooth continuously welded seams.
- Construction provides either a 30° or 60° slope on front cover depending on mounting position.
- Welded brackets provide for enclosure mounting.
- Captive cover screws thread into sealed wells.
- Larger enclosures provide internally hinged removable covers designed to hold the cover open during wiring (as noted in table).
- Oil resistant gasket and adhesive.
- A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
- Finish
- Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating.
Specifications
Specifications
Hammond Manufacturing - 1490G6 - Applications
- Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
- Ideal for wall or surface mounting to provide the necessary control slope.
- Provides protection from dirt, dust, oil and water.
Hammond Manufacturing - 1490G6 - Product Categories
- Security
- Electrified Door Hardware
- Switches and Pushbuttons
- Electrical
- Operator Interface
- Pushbutton Enclosures
Hammond Manufacturing - 1490G6 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | 1490G6 |
| Item Description | NEMA 12 PB Consolet, 6 Push Buttons, 30.5mm, Steel/Gray |
| Product Type | Pushbutton |
| Sales Category | Electric Pushbutton Switch |
| UNSPSC Code | 46171500 |
| Part Number | 1490G6 |
| Series | Type 12 Mild Steel Pushbutton Enclosures (1490 Series) |
| Size H x W x D | 7.25 in x 8.5 in x 6.75 in (184 mm x 216 mm x 171 mm) |
| Shipping Weight | 7 lbs(3.18 kg) |
| UNSPSC | 39121326 |
| UPC | 623980475202 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Packaging Type | Box |
