Brand: Hammond Manufacturing
|
SKU:
381224

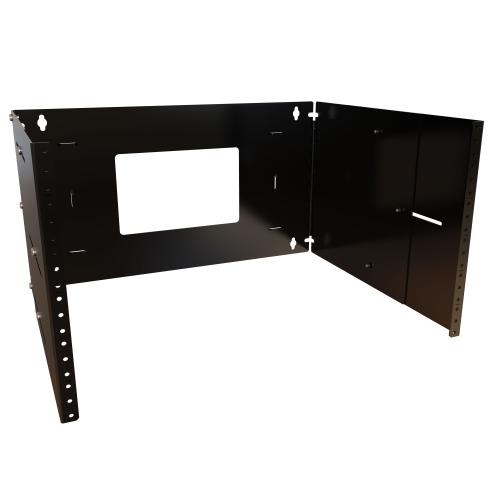

Hammond Manufacturing APB19010BK1 | 6U Adjustable Wall Bracket, 12"-18" Depth
Regular price
$138.13
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing APB19010BK1 | 6U Adjustable Wall Bracket, 12&...
Regular price
$138.13
Unit price
Brand: Hammond Manufacturing
|
SKU:
381224
Regular price
$138.13
Unit price
Description
Description
Hammond Manufacturing APB19010BK1 | 6U Adjustable Wall Bracket, 12"-18" Depth
The APB19010BK1 is a 6U adjustable wall bracket offering 12" to 18" depth flexibility for mounting network and AV gear. Its steel construction and hinged design allow easy rear access for cable routing or maintenance. Supporting multiple mounting heights, it’s a reliable and space-efficient choice for wall installations in IT or AV environments.
Hammond Manufacturing - APB19010BK1 - Features
- Available in 4U, 6U, 8U and 12U mounting heights.
- Hinged for easy rear access.
- Adjusts in depth from 12" to 18" with ease so there is no need to disassemble the whole rack to adjust the depth.
- Rear cable access with multiple tie points for cable management.
- Self-squaring design ships un-assembled (some assembly required).
- Constructed in 14-gauge steel.
- Tapped 10-32 19" mounting rails are constructed in 14-gauge steel and include rack unit indicators.
- SCREW1032-25 , 25-pack of 10-32 mounting hardware included.
- 100 lbs (45 kg) static load rating .
- Swing weight is rated for 1.5 lbs (0.68 kg) per rack unit, evenly distributed.
- Finished in RAL9005 black powder paint. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for GSA Schedule purchases.
- BAA/TAA-compliant documentation available upon request.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
Specifications
Specifications
Hammond Manufacturing - APB19010BK1 - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Wall Mount Racks and Cabinets
- Wall Mount Racks
Hammond Manufacturing - APB19010BK1 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | APB19010BK1 |
| Item Description | 6U Adjustable Wall Bracket, 12"-18" Depth |
| Color | Black |
| Material | Steel |
| Mounting Width | 19" |
| Rack Units | 6U |
| Seismic Rating | No |
| Type | Wall-Mount |
| UNSPSC Code | 24102001 |
| Part Number | APB19010BK1 |
| Series | Adjustable Depth Hinged Wall Rack (APB Series) |
| Size H x W x D | 10.48 in x 19.25 in x 18 in (266 mm x 489 mm x 457 mm) |
| Shipping Weight | 15 lbs(6.80 kg) |
| UNSPSC | 43223308 |
| UPC | 623980010854 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Rack Units | 6 |
| Rack Type | Open Wall Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Tapped 10-32 |
