Hammond Manufacturing C2RR196331BK1 | 36U C2RR Rapid Rack, 31.5"D
Regular price
$2,131.69
Unit price
Brand: Hammond Manufacturing
|
SKU:
973418
Regular price
$2,131.69
Unit price
Shipping calculated at checkout.
Description
Description

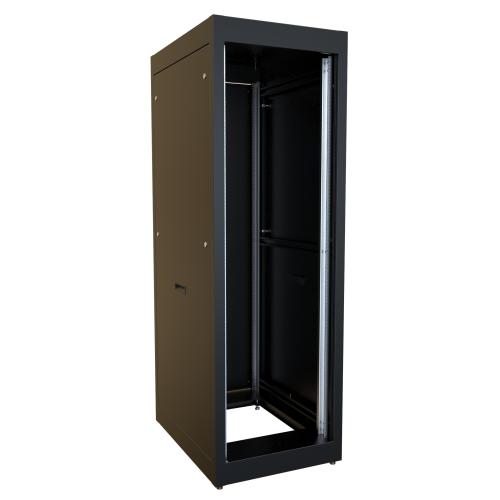

Hammond Manufacturing C2RR196331BK1 | 36U C2RR Rapid Rack, 31.5"D
Offers 36U of mounting height with an overall depth of 31.5”. Narrow width supports dense cable routing. Compatible with 19” equipment, ideal for IT closets and data centers.
Hammond Manufacturing - C2RR196331BK1 - Features
- Available in 24U, 36U, 40U and 45U mounting heights.
- Available in 23” overall width (19" mounting width).
- Available in 23.62" and 31.5" overall depths.
- C-channel struts provide cabinet strength, ease and flexibility to adjust mounting rails.
- Flush-mounted doors with quarter-turn lock.
- Solid side panels.
- One (1) interchangeable top panel.
- Welded cabinet frame is 14-gauge steel with 12-gauge steel reinforced corner brackets.
- Cabinet doors and side panels are constructed in 16-gauge steel.
- Drilled and 10-32 tapped combination 19" mounting rails are constructed in 12-gauge steel, include rack unit indicators, and are Zinc-plated to provide superior surface areas for equipment grounding.
- 1,500 lbs (680 kg) static load rating .
- Grounding studs are provided on the frame, side panels, and doors. The front and rear studs on the cabinet frame conform to PET.
- Finished in textured RAL9005 black or RAL 7035 light gray powder coat. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for GSA Schedule purchases.
- BAA/TAA-compliant documentation available upon request.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
- Included Components
- All configurations include:
- Welded steel frame with factory-installed nylon leveling feet, ground studs, and mounting points for optional casters.
- Two (2) pairs of adjustable depth EIA compliant 10-32 tapped flange mounting rails.
- Starter pack of SCREW1032-25 screws.
- Two (2) removable side panels (with 1/4 turn latches).
- C2RR Series Specific Components Include:
- One (1) solid locking door (Can be used as either front or rear door)
- One (1) solid top panel
- C2RR "D" Series
- Specific
- Components include (Replaced by C4RR ):
- One (1) locking front window door
- One (1) locking rear louvered door
- One (1) vented top panel with four (4) 3.5" (89 mm) diameter cable access holes with covers.
Specifications
Specifications
Hammond Manufacturing - C2RR196331BK1 - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Cabinets Server Racks
Hammond Manufacturing - C2RR196331BK1 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | C2RR196331BK1 |
| Item Description | 36U C2RR Rapid Rack, 31.5"D |
| UNSPSC Code | 24102001 |
| Part Number | C2RR196331BK1 |
| Series | Equipment Rack Cabinet (C2RR Series) |
| Size H x W x D | 70.31 in x 23 in x 31.5 in (1,786 mm x 584 mm x 800 mm) |
| Shipping Weight | 244 lbs(110.68 kg) |
| UNSPSC | 43223306 |
| UPC | 623980439358 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Rack Units | 36 |
| Rack Type | Cabinet |
| Paint Color | RAL9005 Black |
| Rail Type | Tapped 10-32 |
