Brand: Hammond Manufacturing
|
SKU:
962032
Hammond Manufacturing C3R181810HCR | Type 3R Hinge Cover Enclosure, 18" x 18" x 10", Galvanized/Gray
Regular price
$381.42
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing C3R181810HCR | Type 3R Hinge Cover Enclosure,...
Regular price
$381.42
Unit price
Brand: Hammond Manufacturing
|
SKU:
962032
Hammond Manufacturing C3R181810HCR | Type 3R Hinge Cover Enclosure, 18" x 18" x 10", Galvanized/Gray
Regular price
$381.42
Unit price
Shipping calculated at checkout.
Description
Description

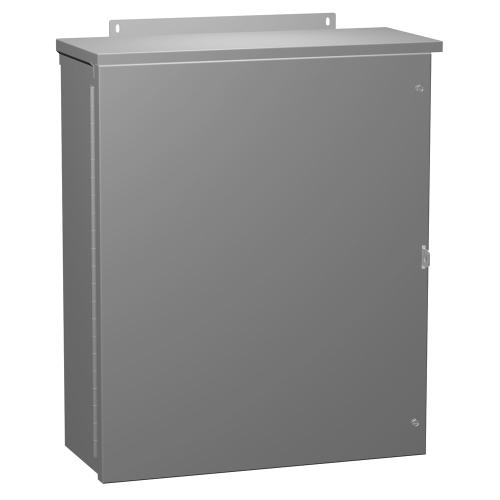

Hammond Manufacturing C3R181810HCR | Type 3R Hinge Cover Enclosure, 18" x 18" x 10", Galvanized/Gray
The C3R181810HCR is a Type 3R galvanized enclosure from Hammond with a hinge cover and gray finish, measuring 18" x 18" x 10". It meets UL-50 and CSA Type 3R standards for outdoor use, offering protection against rain and dripping water. Ideal for housing electrical components in harsh environments.
Hammond Manufacturing - C3R181810HCR - Features
- Standards
- UL-50 Type 3R
- CSA Type 3R
- Complies with
- NEMA Type 3R
- IEC 60529, IP24
- Construction
- Formed and spot welded from 16 or 14 gauge galvanized steel.
- Drip shield top and seam-free sides, front and back.
- Stainless steel continuous hinge.
- Cover fastened with captive plated screws.
- Padlocking hasp.
- Collar studs provided for mounting optional panels.
- External mounting feet.
- Oil resistant gaskets are permanently secured.
- Finish
- Enclosure and cover are finished inside and out in ANSI 61 gray powder coating.
Specifications
Specifications
Hammond Manufacturing - C3R181810HCR - Applications
- Designed for use as a wiring/junction box.
- Provides protection against rain, sleet, snow and dripping water.
Hammond Manufacturing - C3R181810HCR - Product Categories
- Security
- Access Control
- Access Control Accessories
- Electrical
- Commercial
Hammond Manufacturing - C3R181810HCR - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | C3R181810HCR |
| Item Description | Type 3R Hinge Cover Enclosure, 18" x 18" x 10", Galvanized/Gray |
| UNSPSC Code | 46171500 |
| Part Number | C3R181810HCR |
| Series | Type 3R Painted Galvanized Steel Wallmount Enclosure (C3R HCRMD Series) |
| Size H x W x D | 18 in x 18 in x 10 in (457 mm x 457 mm x 254 mm) |
| Shipping Weight | 22 lbs(9.98 kg) |
| UNSPSC | 39121324 |
| UPC | 623980362014 |
| UL File # | E65324 |
| CSA Cert. # | LL21312 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Packaging Type | Box |
