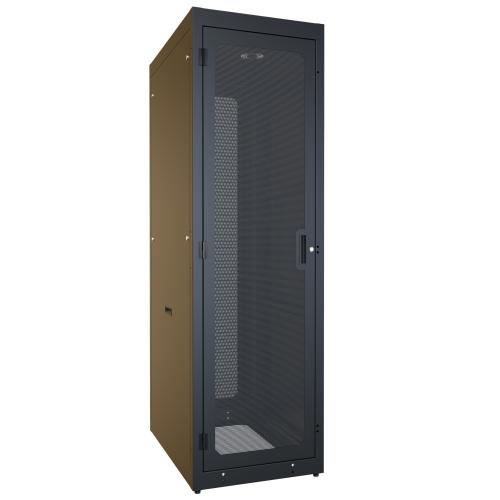

Hammond Manufacturing C4RR247336SBK1 | 42U C4RR Server Cabinet Assembly, 24"W x 36"D

Hammond Manufacturing - C4RR247336SBK1 - Features

• Available in 42U and 44U mounting heights.
• 24” Width Frame Features:
• Generous cabling space
• The cabinet top includes four (4) 3.5” wide cable entry holes.
• 30” Width Frame Features:
• Mounting rails include cable-tie support and cable pass-through holes.
• The cabinet top includes four (4) 3.5” wide cable entry holes.
• Support for vertical cable managers without obstructing mounting rails.
• Available in 31.5", 36" and 42" overall depths.
• C-channel struts provide cabinet strength, ease and flexibility to adjust mounting rails.
• Flush-mounted doors with quarter-turn lock.
• One (1) interchangeable top panel.
• Welded cabinet frame is constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
• Cabinet doors and side panels are constructed in 16-gauge steel.
• Square hole 19" mounting rails are constructed of 12-gauge steel, include rack unit indicators, and are Zinc-plated to provide superior surface areas for equipment grounding.
• UL Listed 2416 load rated to 3,000 lbs (1,360 kg).
• Seismic rated up to 1,200 lbs (544 kg) of dynamic load with an Ip factor of 1.5 in accordance with the IBC 2018, CBC 2019, NBC 2015, ASCE 7-16, and ASCE 7-10. Requires a seismic bolt-down kit such as the C4K-Z4 (sold separately).
• 1/2-20 Bonding collar studs are provided in frame (4x inner top and 2x bottom side of frame). Additional 10–32 studs are included on compatible side panels and doors.
• Optional eye-bolts provide a lifting capacity of 1,500 lbs (680 kg).
• Finished in textured RAL9005 black powder coat. Complies with the Greenguard guidelines for indoor air quality.
• Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
• TAA-compliant for GSA Schedule purchases.
• BAA/TAA-compliant documentation available upon request.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.
• Included Components
• All configurations include:
• Welded steel frame with factory-installed nylon leveling feet, ground studs, and mounting points for optional casters.
• Two (2) pairs of adjustable depth EIA-compliant square hole punched mounting rails.
• Starter pack of CAGKIT1032-25 screws and cage nuts.
• Two (2) removable side panels (with 1/4 turn latches).
• One (1) four (4) fan cutout top panel.
• C4RR "D" Cabinet
• Specific
• Components include:
• One (1) acrylic window front door with a quarter-turn lock.
• One (1) perforated rear door (65% open area vented) with a quarter-turn lock.
• One (1) vertical cable tray with button PDU mounting.
• C4RR "S" Cabinet
• Specific
• Components include:
• One (1) perforated front door (65% open area vented) with a quarter-turn lock.
• One (1) perforated split/barn rear door (65% open area vented) with quarter-turn lock.
• Two (2) vertical cable trays with button PDU mounting.
• As of October 17, 2023, you will be able to add HDMELB lifting eye-bolts to this cabinet.
• This is a rolling change and older stock will not include this new feature enhancement. To ensure you receive a cabinet with this new feature, contact your local representative .
• Need 23" Mounting Rails?
