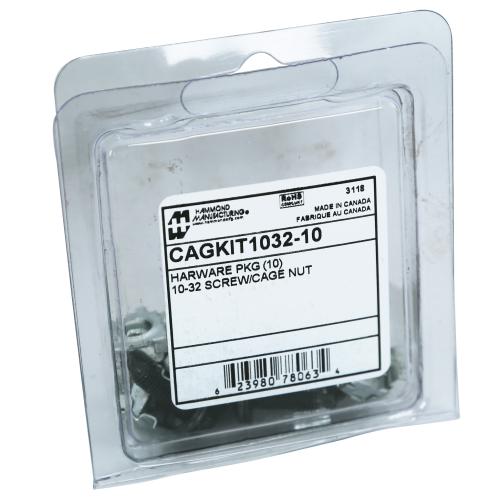

Hammond Manufacturing CAGKIT1032-10 | Cage Nuts & Screws Kit, 10-32, Pack of 10
Sale price
$17.99
Regular price
$19.79
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing CAGKIT1032-10 | Cage Nuts & Screws Kit, 1...
Sale price
$17.99
Regular price
$19.79
Unit price
Brand: Hammond Manufacturing
|
SKU:
9961881
Sale price
$17.99
Regular price
$19.79
Unit price
Shipping calculated at checkout.
Description
Description
Hammond Manufacturing CAGKIT1032-10 | Cage Nuts & Screws Kit, 10-32, Pack of 10
Hammond’s CAGKIT1032-10 is a cage nuts and screws kit that includes 10 black 10-32 screws (0.75" length) and zinc-plated cage nuts. Designed for use with square-hole panel rails, this kit makes rack equipment installation easy and secure. Available in other thread sizes (12-24, M6), it's a must-have accessory for rack assembly and maintenance.
Hammond Manufacturing - CAGKIT1032-10 - Features
- This combo-pack is available in 10-32, 12-24 or M6 Mounting Screws and Cage Nuts.
- Convenient to have when installing rack-mount equipment in server (square hole) rails.
- The pack includes an equal number of 0.750” length black rack screws and zinc plated cage nuts for square hole punched panel rails.
- Quadrex truss oval head screw.
- ø 0.186 Diameter.
- 0.75" Length.
- Machine screw with full dog point.
- UNF-2A Threaded.
- Heat-treated low-carbon steel to ANSI B18.6.3 standard.
- Captive flat washer constructed of black Nylon 6/6.
- Outside Diameter: 0.429"-0.439"
- Thickness: 0.030"-0.040"
- Cage Nuts
- Constructed of zinc-plated SAE 1050-1065 spring steel.
- 0.375in (9.54mm) square hole punched panel rails.
- Heat-treated through austempering.
- Recommended torque spec 31.4 +/- 20% inch-lbs
- Maximum load rating will vary depending on rail mounting and cabinet load rating.
Specifications
Specifications
Hammond Manufacturing - CAGKIT1032-10 - Product Categories
- Industrial
- Electrical Enclosures
- Electrical Enclosures
- Rack Accessories
- Hardware for Rack Mounting Solutions
Hammond Manufacturing - CAGKIT1032-10 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | CAGKIT1032-10 |
| Item Description | Cage Nuts & Screws Kit, 10-32, Pack of 10 |
| UNSPSC Code | 24102001 |
| Part Number | CAGKIT1032-10 |
| Series | Mounting Screw and Cage Nut Combo-Pack (CAGKIT Series) |
| Shipping Weight | 0.2 lbs(0.09 kg) |
| UNSPSC | 31161504 |
| UPC | 623980780634 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
