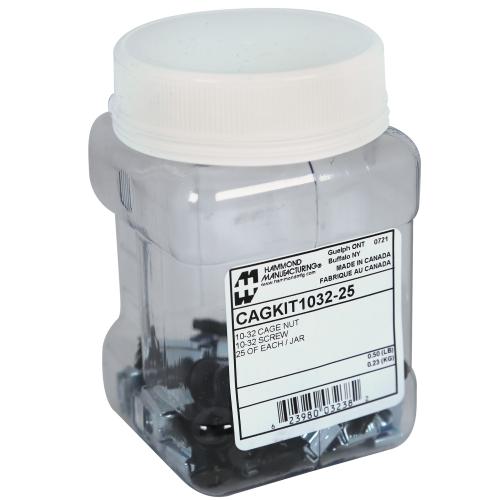

Hammond Manufacturing CAGKIT1032-25 | Cage Nuts & Screws Kit, 10-32, Pack of 25
The Hammond CAGKIT1032-25 includes 25 sets of 10-32 screws and cage nuts for quick rack mounting. Designed for square hole rails, it features 0.750" black screws and zinc-plated cage nuts. Convenient for server and network equipment installation in EIA-compliant racks.
Hammond Manufacturing - CAGKIT1032-25 - Features
- This combo-pack is available in 10-32, 12-24 or M6 Mounting Screws and Cage Nuts.
- Convenient to have when installing rack-mount equipment in server (square hole) rails.
- The pack includes an equal number of 0.750” length black rack screws and zinc plated cage nuts for square hole punched panel rails.
- Quadrex truss oval head screw.
- ø 0.186 Diameter.
- 0.75" Length.
- Machine screw with full dog point.
- UNF-2A Threaded.
- Heat-treated low-carbon steel to ANSI B18.6.3 standard.
- Captive flat washer constructed of black Nylon 6/6.
- Outside Diameter: 0.429"-0.439"
- Thickness: 0.030"-0.040"
- Cage Nuts
- Constructed of zinc-plated SAE 1050-1065 spring steel.
- 0.375in (9.54mm) square hole punched panel rails.
- Heat-treated through austempering.
- Recommended torque spec 31.4 +/- 20% inch-lbs
- Maximum load rating will vary depending on rail mounting and cabinet load rating.
Specifications
Specifications
Hammond Manufacturing - CAGKIT1032-25 - Product Categories
- Hardware
- Tools and Supplies
- Nuts
- Rack Accessories
- Hardware for Rack Mounting Solutions
Hammond Manufacturing - CAGKIT1032-25 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | CAGKIT1032-25 |
| Item Description | Cage Nuts & Screws Kit, 10-32, Pack of 25 |
| Category | Nutdriver |
| Diameter-Thread | 10 Gauge (Swg) |
| Finish-Plating | Grey |
| Hydrogen Embrittlement | No |
| Ind Std/Cust Special | None |
| Material/Mech Props | Steel |
| Metric/Inch | Inch |
| Product Type | Nut - Cage |
| Quality Standard | Commercial Release |
| Rohs Compliant | Not Declared |
| UNSPSC Code | 31161735 |
| Part Number | CAGKIT1032-25 |
| Series | Mounting Screw and Cage Nut Combo-Pack (CAGKIT Series) |
| Shipping Weight | 0.5 lbs(0.23 kg) |
| UNSPSC | 31161504 |
| UPC | 623980032382 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
