Brand: Hammond Manufacturing
|
SKU:
889972

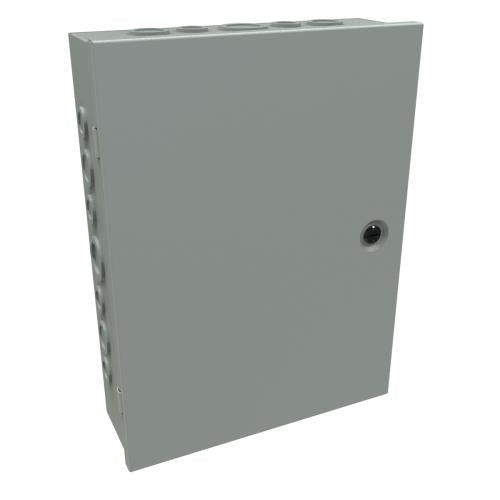

Hammond Manufacturing CHKO16124 | NEMA 1 Hinge Cover Enclosure with Knockouts, 16" x 12" x 4", Steel/Gray
Regular price
$53.26
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing CHKO16124 | NEMA 1 Hinge Cover Enclosure with...
Regular price
$53.26
Unit price
Brand: Hammond Manufacturing
|
SKU:
889972
Regular price
$53.26
Unit price
Shipping calculated at checkout.
Description
Description
Hammond Manufacturing CHKO16124 | NEMA 1 Hinge Cover Enclosure with Knockouts, 16" x 12" x 4", Steel/Gray
The CHKO16124 is a NEMA 1-rated hinge cover enclosure with knockouts, made from steel and finished in gray. Sized at 16" x 12" x 4", it meets UL-50 and CSA Type 1 standards for indoor use. Provides convenient access and routing via pre-installed knockouts. Suitable for electrical control or junction box applications.
Hammond Manufacturing - CHKO16124 - Features
- Standards
- UL-50 Type 1
- CSA Type 1
- Complies with
- NEMA Type 1
- IEC 60529, IP20
- Construction
- Formed and spot welded from 16 gauge (up to 30"x24") or 14 gauge (36"x24") steel.
- Formed steel covers close by use of slotted quarter turn latch.
- Full swing, hinged door. NOTE: Former butt hinge being transitioned to new integral design starting late 2020. See image gallery for view of new hinge.
- Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
- Through holes in back for wall mounting.
- Grounding location embossed in body.
- Finish
- Enclosure and cover are finished in ANSI 61 gray powder coating.
Specifications
Specifications
Hammond Manufacturing - CHKO16124 - Applications
- Designed for general purpose indoor commercial use as a junction, pull or switch box.
- Hinged cover with latch provides easy access during installation and maintenance.
Hammond Manufacturing - CHKO16124 - Product Categories
- Security
- Intrusion Detection
- Intrusion Modules
- Electrical
- Commercial
- Junction Boxes
Hammond Manufacturing - CHKO16124 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | CHKO16124 |
| Item Description | NEMA 1 Hinge Cover Enclosure with Knockouts, 16" x 12" x 4", Steel/Gray |
| Type | Enclosures |
| UNSPSC Code | 46171600 |
| Part Number | CHKO16124 |
| Series | Type 1 Mild Steel Junction Box (CHKO Series) |
| Size H x W x D | 16 in x 12 in x 4 in (406 mm x 305 mm x 102 mm) |
| Shipping Weight | 12 lbs(5.44 kg) |
| UNSPSC | 39121324 |
| UPC | 623980361079 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Packaging Type | Bag |
